HobbyKing Boat ESC Programming Card

Programming Functions:
Running Mode: Forward with brake / Forward and reverse with brake / Forward and reverse
Acceleration: 6% / 9% / 12%
Low Voltage Protection: None / 2.6V / 2.8V / 3.0V / 3.2V / 3.4V
Start Mode (Punch): Level 1 / Level 2 / Level 3 / Level 4 / Level 5 / Level 6 / Level 7 / Level 8 / Level 9
Reverse Force: 25% / 50% / 75% / 100%
Timing: 0° / 5° / 10° / 15° / 20° / 25° / 30° / Automatic

Specs:
Constant Current: 90A
Burst Current: 120A
Battery: 2-6S Lipoly
BEC: 5.5v / 4A
Motor Type: Sensorless Brushless
Cooling: Watercooled
Size: 87 x 38 x 22mm
Weight: 105g

Programming Functions:
Running Mode: Forward with brake / Forward and reverse with brake / Forward and reverse
Acceleration: 6% / 9% / 12%
Low Voltage Protection: None / 2.6V / 2.8V / 3.0V / 3.2V / 3.4V
Start Mode (Punch): Level 1 / Level 2 / Level 3 / Level 4 / Level 5 / Level 6 / Level 7 / Level 8 / Level 9
Reverse Force: 25% / 50% / 75% / 100%
Timing: 0° / 5° / 10° / 15° / 20° / 25° / 30° / Automatic

HobbyKing ESC Programming Card

Suits The following HobbyKing ESCs

Hobby King 120A ESC 4A UBEC
Hobby King 80A ESC 4A SBEC
Hobby King 60A ESC 4A UBEC
Hobby King 40A ESC 4A UBEC
Hobby King 30A ESC 3A UBEC
Hobby King 20A ESC 3A UBEC

See related items below.

This 45A brushed ESC is a great replacement for your model's stock ESC or for setting up a new brushed power system in your car or truck. It features a low voltage cut-off for use with lipoly batteries. Its compact and lightweight design make it ideal for use in 1/10 scale drift cars utilizing brushed motors.

Features:
• Low voltage cutoff for use with Lipoly batteries
• Compact and lightweight design
• 5.6V/2A BEC

Specs:
Continuous Current: 45A
Burst Current: 320A (10sec)
Suitable Car: 1/10 on and off road
Battery: 2 cell Lipo (5-6 cells NI-xx)
BEC output: 5.6V/2A switch mode built-in
Motor type: brushed
Operation: Forward/Brake/Reverse
Dimension: 38x28x22mm
Weight: 40g

The HobbyKing Red Brick ESCs wont win first place for style, though they will take top points for simplicity and reliability. With a basic set of programming features these ESCs are a perfect solution for anyone looking for a basic yet robust speed controller.

The Red Brick ESCs have been engineered with heat dissipation in mind. featuring over sized Aluminium heat sinks the Red Brick ESCs are slightly larger than many ESCs in their class, however this compromise in size is aimed at assisting to eliminate the problems associated with over heating.

Features:
• Smooth, linear throttle response
• Uses powerful, high performance MCU
• Multiple self protection functions: abnormal voltage input, low battery protection, over thermal protection, throttle signal loss
• Programmable via throttle stick (see instructions under "Files" tab)

Specs:
Constant Current: 70A
Max Burst Current: 90A
Input Voltage: 2~7S (7.4~25.9), 6~20 NiCd/NiMH
BEC: 5V/5 A
Dimensions: 60x35x18mm
Weight: 70g
Servo Lead: JR Type

The HobbyKing Red Brick ESCs won't win first place for style, though they will take top points for simplicity and reliability. With a basic set of programming features, these ESCs are a perfect solution for anyone looking for a basic yet robust speed controller.

The Red Brick ESC has been engineered with heat dissipation in mind. featuring an oversized Aluminium heat sink for the FETS and an individual heatsink for the MCU the Red Brick ESC is slightly larger than many ESCs in its class, however, this compromise in size is aimed at assisting to eliminate the problems associated with overheating.

Specs:
Constant Current: 50A
Burst Current: 70A
Battery: 2-6S Lipoly
BEC: 5.5v / 4A
Motor Type: Sensorless Brushless
Cooling: Watercooled
Size: 87 x 38 x 22mm
Weight: 105g

Programming Functions:
Running Mode: Forward with brake / Forward and reverse with brake / Forward and reverse
Acceleration: 6% / 9% / 12%
Low Voltage Protection: None / 2.6V / 2.8V / 3.0V / 3.2V / 3.4V
Start Mode (Punch): Level 1 / Level 2 / Level 3 / Level 4 / Level 5 / Level 6 / Level 7 / Level 8 / Level 9
Reverse Force: 25% / 50% / 75% / 100%
Timing: 0° / 5° / 10° / 15° / 20° / 25° / 30° / Automatic

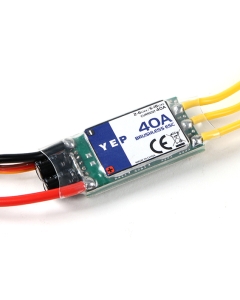

We are proud to offer you our YEP ESC series. Although being an exceptional helicopter ESC the YEP range is unbelievably popular with fixed wing aircraft. Featuring programming options such as super smooth soft start, fixed RPM mode (governor mode) and ultra high resolution, you'll be hard pressed to find a better ESC on the market today!

We have tested these units on our own helicopters and found them to be among the best we have ever seen. The super smooth soft start, along with its ultra high resolution throttle response puts this ESC in a class of its own!

YEP ESCs are built to last and can be programmed via optional programing card or by transmitter stick inputs.

YEP ESC series offers a super smooth linear throttle responce making them exceptional fixed wing and helicopter ESCs.  The features offered in this ESC are only matched by the most expensive european brands at a fraction of the cost. The super smooth soft start, along with its ultra high resolution throttle response puts this ESC in a class of its own!

HobbyKing® ™ X-Car series ESCs offer excellent performance and features at a great price. With precise throttle linearity, smooth startup/acceleration, strong brakes and fully adjustable programming options, you will not find a better value in R/C car ESCs on the market today!

Built with high quality components, and offering both sensored and senorless motor operation, this is a truly versatile high performance ESC that wont break the bank.

Features:
• Enhanced throttle response, precise throttle linearity, excellent acceleration and strong brakes
• Programmable with the Hobbyking X-Car programming card to make adjustments. (sold separately)
• Automatically detects the number of cells within the battery pack.
• Multiple protection features: Low voltage cut-off protection, over-heat protection, throttle signal loss protection and motor blocked protection.
• Supports both sensored and sensorless brushless motors.
• Compatible with NOVAK, LRP and ORION sensored brushless motor.
• Built-in cooling fan
• Programmable via USB (USB adapter sold separately)

Specs:
Continuous Current: 60A
Burst Current: 240A
Suitable Car: 1/10 on and off road
Battery: 2-3 cells Lipo (5-9 cells NI-xx)
BEC output: 5.7V/3A switch mode built-in
Motor type: Sensorless and sensored brushless motors
Running mode: Forward only or forward with reverse (user programmable mode)
Dimension: 43 x 36 x 33mm
Weight: 84g

Includes:
60A Sensored/Sensorless Brushless ESC
Sensor cable (6-pin)

*Note: See related items below for compatible programming card and USB adapter.

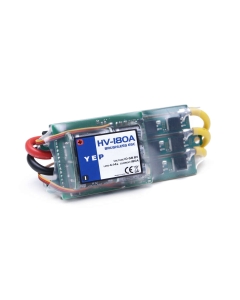

We are now proud to offer our HobbyKing YEP ESC series. With helicopter specific programming options such as super smooth soft start, fixed RPM mode (governor mode) and ultra high resolution, you won't find a better helicopter ESC on the market today!

We have tested these units on our own helicopters and found them to be among the best we have ever seen. The super smooth soft start, along with its ultra high resolution throttle response puts this ESC in a class of its own!

The YEP series ESCs not only offer excellent performance for helicopters, they are also well suited for fixed-wing use with a whole host of programmable features.

HobbyKing YEP ESCs are built with the highest quality components to ensure true-to-rating current handling and high efficiency operation.

All HobbyKing YEP ESCs can be programmed via optional programing card or by transmitter stick inputs.

Features:
• Powerful 5.5V/4A Switching BEC
• Optional programming card for convenient setup
• Super fine throttle resolution provides first-rate and highly accurate linearity
• Super smooth adjustable start-up mode
• Constant RPM mode (governor mode)
• Adjustable F3A brake.
• 3 steps adjustable normal EMF brake
• High anti-interference capability
• Low voltage cut-off protection with automatic adjustment for NiCd/NiMH/Li-Ion/LiPo/LiFePO4
• Soft cut-off option at low voltage, slows motor RPM gradual rather than hard cutoff (LVC)
• Low voltage cut-off can be disabled
• Variable cut-off voltage / cell
• Active free-wheeling circuit allows for unlimited "partial load" capability
• LED status display
• Adjustable motor timing from 0° to 30°
• Blocked rotation protection (senses a jammed motor and stops motor rotation)
• Motor reversing from ESC (no need to change ESC/motor wires)
• Over-temperature protection and overload alarm
• Throttle signal lose protection. If the signal is lost for 3 seconds, the power will automatically cut-off.
• Safe power-on. (Motor will not start until throttle is returned to lowest position)


***This ESC is compatible with both helicopter and airplane models.***


Specification:
Max Cont Current: 18A
Max Burst Current: 20A for 10 seconds
Input Voltage: 2-4 cells li-XX or 6-12 Ni-MH/Ni-Cd battery
BEC: 5.5V/4A Switching BEC
PWM: 8~16 KHz
Max RPM: 240,000rpm for 2 Poles Brushless Motor
PCB Size: 34x24x9mm
Weight: 22g (including wires)

YEP ESC series offers a super smooth linear throttle responce making them exceptional fixed wing and helicopter ESCs.  The features offered in this ESC are only matched by the most expensive european brands at a fraction of the cost. The super smooth soft start, along with its ultra high resolution throttle response puts this ESC in a class of its own!

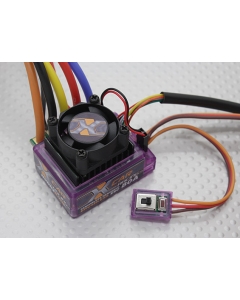

HobbyKing X-Car series ESCs offer excellent performance and features at a great price. With precise throttle linearity, smooth startup/acceleration, strong brakes and fully adjustable programming options, you will not find a better value in R/C car ESCs on the market today!

Built with high quality components, and offering both sensored and senorless motor operation, this is a truly versatile high performance ESC that wont break the bank.

Features:
• Enhanced throttle response, precise throttle linearity, excellent acceleration and strong brakes
• Programmable with the Hobbyking X-Car programming card to make adjustments. (sold separately)
• Automatically detects the number of cells within the battery pack.
• Multiple protection features: Low voltage cut-off protection, over-heat protection, throttle signal loss protection and motor blocked protection.
• Supports both sensored and sensorless brushless motors.
• Compatible with NOVAK, LRP and ORION sensored brushless motor.
• Built-in cooling fan
• Programmable via USB (USB adapter sold separately)

Specs:
Continuous Current: 80A
Burst Current: 450A
Suitable Car: 1/10 on and off road
Battery: 2-3 cells Lipo (5-10 cells NI-xx)
BEC output: 5.7V/3A switch mode built-in
Motor type: Sensorless and sensored brushless motors
Running mode: Forward only or forward with reverse (user programmable mode)
Dimension: 44 x 34 x 31.5mm
Weight: 85g

Includes:
80A Sensored/Sensorless Brushless ESC
Sensor cable (6-pin)

*Note: See related items below for compatible USB adapter.

This is the programming card for the YEP ESCs. This card will allow you to conveniently program your ESC settings at home or at the field. Its compact size allows it to be stored in your field box or pocket with ease.

This is the USB link for programming your HobbyKing X-Car 120A & 60A brushless sensored/sensorless ESC. It will allow you to adjust all of the programming options quickly and easily via your PC.

Learn More

TURNIGY Programming Card

For use with Turnigy Plush ESCs (exc Plush-32)

This device plugs inbetween the Rx and the speed controller. It allows the user to program the BESC according to a series of LED indicators.
it has buttons at the bottom so you can navigate through the menu and select the feature you want, then change it. Its very simple and is much easier than listening to jingles or a series of beeps.

This item is an excellent addition to your flight kit, especially with the new hard plastic case and lets you quickly change the BESCs settings in the field in a much shorter time and with greater assurance that what you have changed is correct and saved into the BESC.

No more black magic throttle stick programming!
Throw away the manual, you wont need it anymore!

Compatible with Turnigy Plush speed controllers but NOT the Plush-32 ESC's.

Turnigy TY-P1 25Amp Brushless ESC Programming Card

Programming Options:
Brake (OFF/ON).
Cut-off Type (Soft-cut/Cut-off).
Cut-off Voltage (Low / Middle / High ).
Start Mode (Normal / Soft / Very Soft ).
Timing Mode (Low / Middle / High).
Cell (Auto, 2S, 3s, 4S).

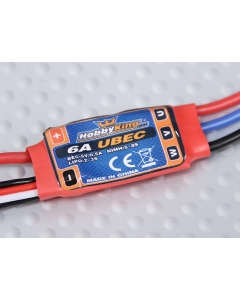

Specs:
Constant Current: 6A
Burst Current: 8A
Battery: 2-3S Lipoly / 5-8s NiXX
BEC: 5v / 0.5A
Motor Type: Sensorless Brushless
Size: 22x6x13mm
Weight: 6g

Specs:
Constant Current: 10A
Burst Current: 12A
Battery: 2-3S Lipoly / 5-8s NiXX
BEC: 5v / 1A
Motor Type: Sensorless Brushless
Size: 26x5x18mm
Weight: 8g

Programming Functions:
Battery Type: Lipo /NiXX
Brake: On / Off
Voltage Protection: Low / Mid / High
Protection mode: Reduce power / Cut off power
Timing: Low / Mid / High
Startup: Fast / Normal / Soft
PWM Frequency: 8k / 16k
Helicopter mode: Off / 5sec / 15sec (Start up delay)

The motor is a powerful, high torque open brush gear 540 motor, brushes can be changed when they wear out and this is matched to a 60amp ESC. The Trackstar Crawler ESC has been specifically designed for RC crawlers and brushed motors. It gives an excellent linear response and driving feel, has a low internal resistance, excellent heat dissipation, and multiple protection features (see features below). It can be easily programmed with the optional pocket-sized LED program card (see related items) with a variety of different settings including; Initial Start Force, Low Voltage Cut-Off, Initial Drag Brake Force, Maximum Reverse Force, and 3 Start Modes.

The motor is a powerful, high torque open brush gear 540 motor, brushes can be changed when they wear out and this is matched to a 60amp ESC. The Trackstar Crawler ESC has been specifically designed for RC crawlers and brushed motors. It gives an excellent linear response and driving feel, has a low internal resistance, excellent heat dissipation, and multiple protection features (see features below). It can be easily programmed with the optional pocket-sized LED program card (see related items) with a variety of different settings including; Initial Start Force, Low Voltage Cut-Off, Initial Drag Brake Force, Maximum Reverse Force, and 3 Start Modes.

The motor is a powerful, high torque open brush gear 540 motor, brushes can be changed when they wear out and this is matched to a 60amp ESC. The Trackstar Crawler ESC has been specifically designed for RC crawlers and brushed motors. It gives an excellent linear response and driving feel, has a low internal resistance, excellent heat dissipation, and multiple protection features (see features below). It can be easily programmed with the optional pocket-sized LED program card (see related items) with a variety of different settings including; Initial Start Force, Low Voltage Cut-Off, Initial Drag Brake Force, Maximum Reverse Force, and 3 Start Modes.

The motor is a powerful, high torque open brush gear 540 motor, brushes can be changed when they wear out and this is matched to a 60amp ESC. The Trackstar Crawler ESC has been specifically designed for RC crawlers and brushed motors. It gives an excellent linear response and driving feel, has low internal resistance, excellent heat dissipation and multiple protection features (see features below). It can be easily programmed with the optional pocket sized LED program card (see related items) with a variety of different settings including; Initial Start Force, Low Voltage Cut-Off, Initial Drag Brake Force, Maximum Reverse Force and 3 Start Modes.

The pocket sized Trackstar LED program card has been specifically designed to work with the brushed Trackstar crawler ESCs. It is very easy and intuative to use and makes the programming of the Trackstar brushed ESC's a simple matter.

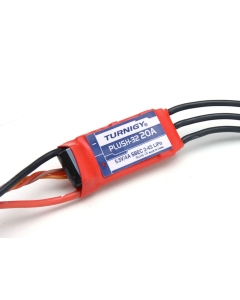

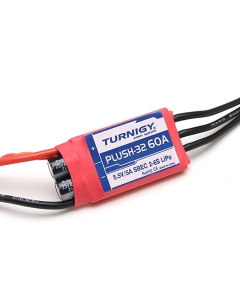

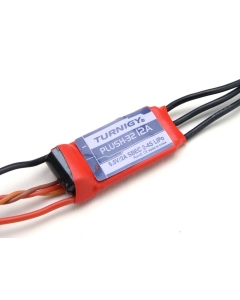

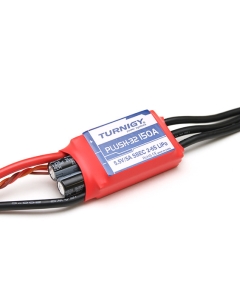

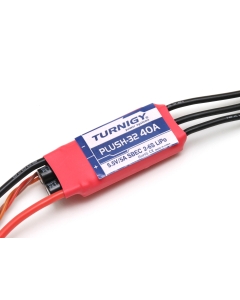

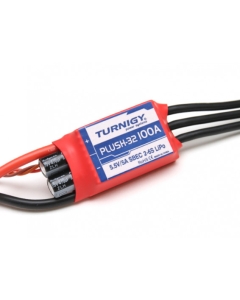

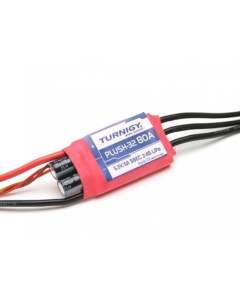

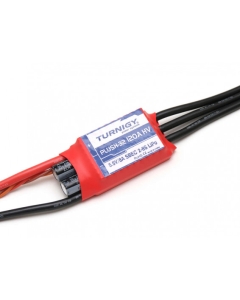

The Turnigy Plush-32 brushless ESC comes with a 32-bit ARM controller which offers higher resolution, makes it quicker, smoother, and more responsive to your throttle inputs. As you would expect, all the Turnigy Plush-32 are manufactured to the same high-quality standards that you have come to expect with all the Turnigy Plush ESCs.

Now with the updated Rev1.1.0 firmware, these speed controllers offer a few more programming options over previous models. These include motor type, spool-up acceleration, PWM frequency, beacon delay, and an adjustable BEC (this is only available on the 150A). Most of these revisions are self-explanatory but the "Beacon Delay" does require an explanation. The "Beacon Delay" is quite a unique function that will cause the ESC to start "beeping" after a predetermined delay of not using the throttle stick, this can be set via the program card. The loud beeping noise is perfect for finding your model if it gets lost in high grass, standing crops, or in the bush, etc. Please note that you can use your existing Plush 32 programming card but you will not be able to access the revised functions unless you purchase the new Rev1.1.0 programming card.

The Turnigy Plush-32 brushless ESC comes with a 32-bit ARM controller which offers higher resolution, makes it quicker, smoother, and more responsive to your throttle inputs. As you would expect, all the Turnigy Plush-32 are manufactured to the same high-quality standards that you have come to expect with all the Turnigy Plush ESCs.

Now with the updated Rev1.1.0 firmware, these speed controllers offer a few more programming options over previous models. These include motor type, spool-up acceleration, PWM frequency, beacon delay, and an adjustable BEC (this is only available on the 150A). Most of these revisions are self-explanatory but the "Beacon Delay" does require an explanation. The "Beacon Delay" is quite a unique function that will cause the ESC to start "beeping" after a predetermined delay of not using the throttle stick, this can be set via the program card. The loud beeping noise is perfect for finding your model if it gets lost in high grass, standing crops, or in the bush, etc. Please note that you can use your existing Plush 32 programming card but you will not be able to access the revised functions unless you purchase the new Rev1.1.0 programming card.

The Turnigy Plush-32 brushless ESC comes with a 32-bit ARM controller which offers higher resolution, makes it quicker, smoother, and more responsive to your throttle inputs. As you would expect, all the Turnigy Plush-32 are manufactured to the same high-quality standards that you have come to expect with all the Turnigy Plush ESCs.

The Turnigy Plush-32 brushless ESC comes with a 32-bit ARM controller which offers higher resolution, makes it quicker, smoother, and more responsive to your throttle inputs. As you would expect, all the Turnigy Plush-32 are manufactured to the same high-quality standards that you have come to expect with all the Turnigy Plush ESCs.

Now with the updated Rev1.1.0 firmware, these speed controllers offer a few more programming options over previous models. These include motor type, spool-up acceleration, PWM frequency, beacon delay, and an adjustable BEC (this is only available on the 150A). Most of these revisions are self-explanatory but the "Beacon Delay" does require an explanation. The "Beacon Delay" is quite a unique function that will cause the ESC to start "beeping" after a predetermined delay of not using the throttle stick, this can be set via the program card. The loud beeping noise is perfect for finding your model if it gets lost in high grass, standing crops, or in the bush, etc. Please note that you can use your existing Plush 32 programming card but you will not be able to access the revised functions unless you purchase the new Rev1.1.0 programming card.

The Turnigy Plush-32 brushless ESC comes with a 32-bit ARM controller which offers higher resolution, makes it quicker, smoother, and more responsive to your throttle inputs. As you would expect, all the Turnigy Plush-32 are manufactured to the same high-quality standards that you have come to expect with all the Turnigy Plush ESCs.

Now with the updated Rev1.1.0 firmware, these speed controllers offer a few more programming options over previous models. These include motor type, spool-up acceleration, PWM frequency, beacon delay, and an adjustable BEC (this is only available on the 150A). Most of these revisions are self-explanatory but the "Beacon Delay" does require an explanation. The "Beacon Delay" is quite a unique function that will cause the ESC to start "beeping" after a predetermined delay of not using the throttle stick, this can be set via the program card. The loud beeping noise is perfect for finding your model if it gets lost in high grass, standing crops, or in the bush, etc. Please note that you can use your existing Plush 32 programming card but you will not be able to access the revised functions unless you purchase the new Rev1.1.0 programming card.

The Turnigy Plush-32 brushless ESC comes with a 32-bit ARM controller which offers higher resolution, makes it quicker, smoother, and more responsive to your throttle inputs. As you would expect, all the Turnigy Plush-32 are manufactured to the same high-quality standards that you have come to expect with all the Turnigy Plush ESCs.

Now with the updated Rev1.1.0 firmware, these speed controllers offer a few more programming options over previous models. These include motor type, spool-up acceleration, PWM frequency, beacon delay, and an adjustable BEC (this is only available on the 150A). Most of these revisions are self-explanatory but the "Beacon Delay" does require an explanation. The "Beacon Delay" is quite a unique function that will cause the ESC to start "beeping" after a predetermined delay of not using the throttle stick, this can be set via the program card. The loud beeping noise is perfect for finding your model if it gets lost in high grass, standing crops, or in the bush, etc. Please note that you can use your existing Plush 32 programming card but you will not be able to access the revised functions unless you purchase the new Rev1.1.0 programming card.

The Turnigy Plush-32 brushless ESC comes with a 32-bit ARM controller which offers higher resolution, makes it quicker, smoother, and more responsive to your throttle inputs. As you would expect, all the Turnigy Plush-32 are manufactured to the same high-quality standards that you have come to expect with all the Turnigy Plush ESCs.

Now with the updated Rev1.1.0 firmware, these speed controllers offer a few more programming options over previous models. These include motor type, spool-up acceleration, PWM frequency, beacon delay, and an adjustable BEC (this is only available on the 150A). Most of these revisions are self-explanatory but the "Beacon Delay" does require an explanation. The "Beacon Delay" is quite a unique function that will cause the ESC to start "beeping" after a predetermined delay of not using the throttle stick, this can be set via the program card. The loud beeping noise is perfect for finding your model if it gets lost in high grass, standing crops, or in the bush, etc. Please note that you can use your existing Plush 32 programming card but you will not be able to access the revised functions unless you purchase the new Rev1.1.0 programming card.

The Turnigy Plush-32 brushless ESC comes with a 32-bit ARM controller which offers higher resolution, makes it quicker, smoother, and more responsive to your throttle inputs. As you would expect, all the Turnigy Plush-32 are manufactured to the same high-quality standards that you have come to expect with all the Turnigy Plush ESCs.

Now with the updated Rev1.1.0 firmware, these speed controllers offer a few more programming options over previous models. These include motor type, spool-up acceleration, PWM frequency, beacon delay, and an adjustable BEC (this is only available on the 150A). Most of these revisions are self-explanatory but the "Beacon Delay" does require an explanation. The "Beacon Delay" is quite a unique function that will cause the ESC to start "beeping" after a predetermined delay of not using the throttle stick, this can be set via the program card. The loud beeping noise is perfect for finding your model if it gets lost in high grass, standing crops, or in the bush, etc. Please note that you can use your existing Plush 32 programming card but you will not be able to access the revised functions unless you purchase the new Rev1.1.0 programming card.

The Plush-32 Brushless ESC programming card is designed to make life easy. No more listening to the beeps, and guessing when to move your throttle to make changes to your ESC settings. This programming card changes settings with the press of a button, and easy-to-read LED’s let you know exactly how your ESC has been programmed. This programming card is a must for your Plush-32 series brushless ESC.

Now with the updated Rev1.1.0 firmware, this program card offers a few more programming options over previous models. These include motor type, spool-up acceleration, PWM frequency, beacon delay, and an adjustable BEC (this is only available for the 150A ESC). Most of these revisions are self-explanatory but the "Beacon Delay" does require an explanation. The "Beacon Delay" is quite a unique function that will cause the ESC to start "beeping" after a predetermined delay of not using the throttle stick, this delay can be set from between 1 and 10mins using this program card. The loud beeping noise is perfect for finding your model if it gets lost in high grass, standing crops, or in the bush, etc. Please note that you can use this programming card to program earlier versions of the Plush 32 series but only ESC's with the Rev1.1.0 firmware will show the revised functions.

This user-friendly multifunction program box with an LCD interface makes programming HobbyWing brushless ESC's very quick and easy. For programming it can be used in 2 ways, first, it can be used on its own to set up an ESC by using the LCD interface. Secondly, it can be used as a USB adapter to link the ESC to a PC to allow for programming via a PC and to update the ESC firmware. It also has another function where it can be used as a voltmeter to measure the voltage of LiPo, Li-Ion, and Li-Fe battery packs. When a pack is connected it shows the complete pack voltage and also each individual cell, it is suitable for 2~8S battery packs.
