Servos & Parts

Looking for solid, high torque servos for your 1/5th scale car, truck or buggy? The Trackstar TS-500HD servos are just the ticket! The servos have a torque range of 27.3 - 32kg whilst still maintaining good operating speeds across its 4.8 - 7.4v input range. The servo's temperature is maintained by its beautifully machined heat sink housing which has a cool red anodized finish.

The Trackstar TS500HD servos are an excellent choice for everday bashing and can even handle the toughest of off-road tracks in almost any race conditions!

Servos are supplied complete with control horns and all necessary fixtures and fittings.

Specs:
Operating Voltage: 4.8 ~ 7.4v
Weight: 188g
Dimensions: 68 x 60 x 30 mm
Torque: 27.3kg (4.8v) 30.5kg (6.0v) 32kg (7.4v)
Speed: 0.22sec/60deg (4.8v) 0.20sec/60deg (6.0v) 0.19 sec/60deg (7.4v)
Motor: Brushed DC motor
Gear Train: Metal
Spline Count: 17

Turnigy TGY-AN13 analog car servo suitable for 1:8 & 1:10 scale cars with a tough, metal geartrain.

Supplied with a full hardware pack.

Specs:
Torque: 13.2kg/cm (4.8V)~14.5kg/cm (6.0V)
Speed: 0.15sec/60deg (4.8V)~0.13sec/60deg (6.0V)
Voltage: 4.8~6.0V
Type: Analog
Gear Train: Metal
Plug: JR type
Size: 40 x 37.5 x 20mm
Weight: 58g
Spline Count: 25

The Turnigy MX series of servos are reknown for their quality and reliability. Each servo is supplied with mounting screws, grommets and a variety of servo arms.

Specs:
Voltage: 4.8~6V
Torque: 2.5~3.0kg/cm
Speed: 0.14~0.12sec/60°
Weight: 17g
Dimensions: 28.2x12.8x27mm
Gears: Plastic
Bearings: Single BB
Motor: Cored
Type: Digital
Servo Plug: JR type
Servo Lead Length: 260mm

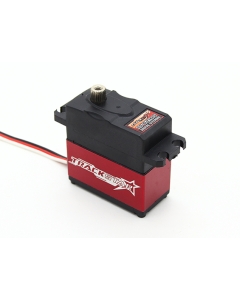

If you're looking for the ultimate steering servo for your 1/8th scale truggy, we have just the thing!

The TrackStar TS-621MG is a standard size digital servo featuring a metal geartrain, coreless motor and a fast 0.14sec transit time. Add to that it's excellent performance and tricked out looks, and you have one outstanding steering servo for the price!

Specs:
Weight: 57g
Size: 39.0mmx19.5mmx38.5mm
Torque: 16.8kg.cm (4.8V)~21.2kg.cm (6.0V)
Speed: 0.16sec/60deg (4.8V)~0.14sec/60deg (6.0V)
Voltage: 4.8~6.0V
Type: Digital Standard
Motor: Coreless Motor
Gear Train: Alloy Gears
Ball Bearing: Dual Japan NSK Ball Bearing
Lead Length: 255mm
Plug: JR/Futaba
Spline Count: 25

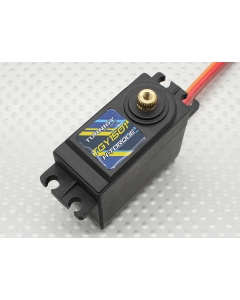

Micro analog servo.
Precise, jitter free response for small parkflyers or light 3D.

Model: TGY-1501MG
Voltage: 4.8~6.0v
Speed: 0.16~0.14sec
Torque: 15.5~17.0kg/cm
Weight: 60g
Size: 40.7x20.5x39.5mm
Spline Count: 25

Specs:
Model: TGY-225MG
Voltage: 4.5 - 6v
Speed: .12s
Running Current: 180mA
Torque: 3.5kg/cm
Gears: Metal
Weight: 26g
Spline Count : 21 Tooth

Narrow dead band width.

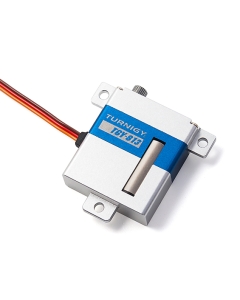

Turnigy TGY-813 is designed for Gliders and Composite EDFs -  low profile performance, better precision movement and low electric impedance. This low profile servo is also a great choice for retract gear as well as thin wing control surfaces.
