FPV Racing Drones

Introducing the HobbyKing™ HMF X240 quadcopter frame kit; a compact FPV capable quadcopter with big capability.

The HMF X240 is a mini sized quadcopter measuring in at 280mm from arm to arm, this robust and cost effective multi-rotor is perfect for FPV racing or negotiating an obstacle course at your local field.

A carbon composite frame makes this compact quad extremely durable whilst remaining flexible, giving you the confidence to push the limits and yet it weighs just 80 grams.

The HMF X240 will accomodate a camera setup on the front or top platforms (why not take a walk on the wild side and have both??)
With space at the rear for your video transmitter, the protected space in the centre of the frame will accept most popular flight controllers.

Four integrated strap slots on the bottom hold the battery in place and allow for easy swap over between flights without compromising cooling.
Vented, double-deck arms provide protection and unimpeded cooling airflow for the recommended  10~15A ESC's while the simple, shock-absorbing undercarriage arrangement will guard against those less than perfect landings.

Any motor in the 13~18mm range with 12mm mounting bolt spacing will drop straight onto the motor mounts and will be sure to give a sparkling performance in the right hands.

The HobbyKing™ HMF X240 is a budget minded FPV racer, sport and all-round fun machine, ready for action with the minimum of fuss.

Features:
• Modular, carbon composite construction for durability
• Large 55 x 55mm protected flight controller bay
• Top mounted equipment platform
• Dedicated platforms for camera and video transmitter
• Wide range of motor and power options
• Unique, flexible landing gear

Specs:
Width: 280mm
Height: 78mm with landing gear and top platform
Motor mounting holes: 12 x 12mm
Weight: 80g

Required:
4 x Motors 1306~1806
1 x Battery 800~1300mah 7.4~11.1V (2 or 3 cells Lipoly)
4 x Propellers up to 6in
4 x ESC’s 7~12A
1 x Multi-Rotor Flight controller
4~6 ch radio
FPV gear (optional)

The H11WH is designed with beginners in mind and features a 6 axis gyro and a headless mode function, making this little quadcopter unbelievably stable and great for developing your flying skills. With stability and control are taken care of, you can concentrate on exploring and recording the footage at your favorite sites.

It not only looks cool, but it is also equipped with a 2.4GHz WiFi operated 720p HD camera that can take stills or video at the press of a button, either on the transmitter or on your own mobile device! Using Wifi the H11WH turns your mobile device into an FPV monitor allowing you to see the live camera feed directly "from the pilot seat".

GEPRC have changed the classic “X” frame design and have come up with a new design idea with a long dual deck built over the “X” arms. The GEP-VX5 is 215mm wheelbase FPV Drone which is designed for 5” propellers.

The individual 4mm carbon fiber arms have a CNC machined bracket to add additional strength when mounting the arms to the 2mm carbon fiber lower deck. This allows individual arms to be easily replaced if damaged. The upper deck is also of 2mm carbon fiber and joined to the lower deck with eight custom 35mm aluminum columns. Up front, there is an adjustable (0~55deg) FPV camera mount to aid in getting the correct viewing angle. At the back, there is a 10 LED panel that can be either run via the flight controller or stand-alone. GEPRC have also provided a new style PDB (with BEC, 5V 3A output, 12V 500mA output) with an XT60 connector which helps remove some of the cable clutter.

Just connect up your favorite Flight Controller, 20~30A ESCs and 2204~2305 motors powered by 3S~4S 1300mAh to get you moving.

Add your FPV gear and you’ll be racing in no time.

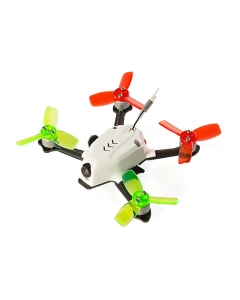

Take off with the Zing 110 Cross. Fitted with a built-in FPV camera, the mini drone is a lightweight plug-and-fly model. Using dedicated 3-in-1 drivers, the 50 MHz operating frequency ensures a smoother start and limits the speed to a maximum of 500kv RPM. The Zing 110 features exposed pads for battery and motor wires so that additions and disassembly can be more conveniently welded.

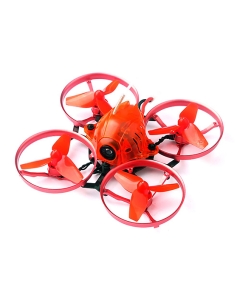

Mini-drones are very popular and they make it extremely easy to take to the sky. The Snapper7 comes ready build and includes a FrSky receiver, 700TVL camera and 48 channel video transmitter to get you jumping into the air. It weighs only 28g (w/o battery) and has a 75mm wheelbase making it ideal for indoor flying but can still take you outdoors.
