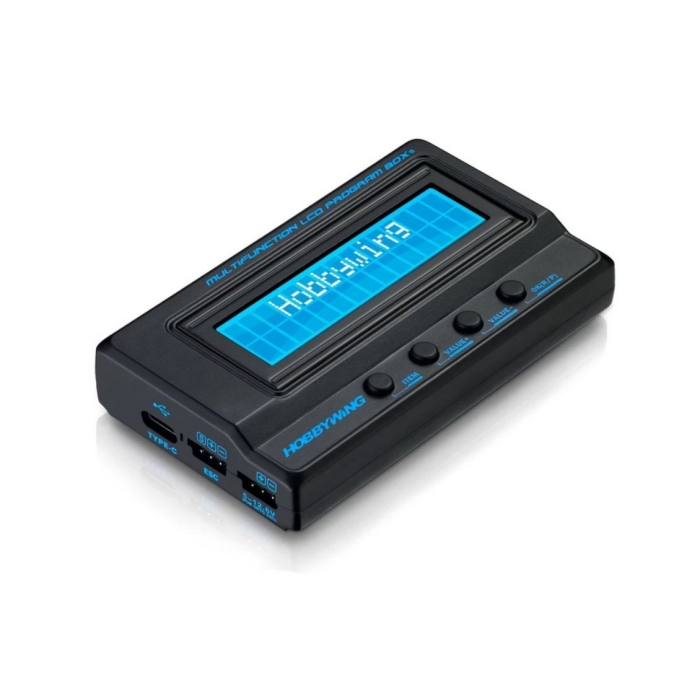

HobbyWing Multifunction LCD Program Box w/Voltmeter

This user-friendly multifunction program box with an LCD interface makes programming HobbyWing brushless ESC's very quick and easy. For programming it can be used in 2 ways, first, it can be used on its own to set up an ESC by using the LCD interface. Secondly, it can be used as a USB adapter to link the ESC to a PC to allow for programming via a PC and to update the ESC firmware. It also has another function where it can be used as a voltmeter to measure the voltage of LiPo, Li-Ion, and Li-Fe battery packs. When a pack is connected it shows the complete pack voltage and also each individual cell, it is suitable for 2~8S battery packs.

The HobbyWing multifunction LCD program box is suitable for use with the following range of HobbyWing brushless speed controllers.

• XeRun Series Car ESC (Version 2.0/2.1/3.0/3.1 and later)
• EZRUN Series Car ESC (Version 2.0 and later)
• PLATINUM Series helicopter/airplane ESC
• Seaking Pro Series Boat ESC

Features:
• User-friendly LCD interface
• Very quick and easy to use
• Can be used as a USB adapter to link to a PC
• When connected to a PC it can set up the ESC or update the firmware
• Can be used as a voltmeter for Lithium battery packs

Specs:
Type: HobbyWing Multifunction LCD Program Box
Display Screen: LCD
Input Voltage: 4.5~12.6V DC
Voltmeter Input Voltage: 2~8S (7.4~28.8V)
Voltmeter Battery Chemistry: LiPo/Li-Ion/Li-Fe
Dimensions: 51x90x17mm
Weight: 65g

Includes:
1 x HobbyWing Multifunction LCD Program Box
1 x Program lead
1 x USB lead to connect to PC

Please note: A copy of the user manual is available under the "Files" tab.
