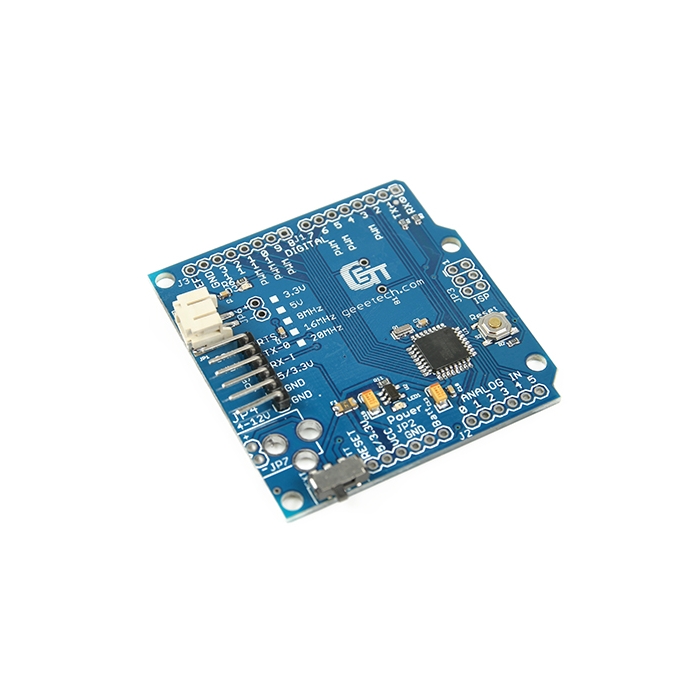

Kingduino Pro 328 - 5V/16MHz

The Kingduino Pro 328 is a 5V/16MHz board running the 16MHz bootloader in a miniature form factor that will fit easily into your next small project.

The Pro 328 does not come with connectors, allowing you to solder in any connector or wire in any orientation required and is recommended for users who understand the limitations of this lack of connectors and USB off board.

The compact size is helped by having the DC power jack footprint available, but without hardware attached. This allows you to decide how best to utilize this function.

This board connects directly to the FTDI Basic Breakout board and supports auto-reset. The Kingduino Pro 328 also works with the FTDI cable but the FTDI cable does not bring out the DTR pin so the auto-reset feature will not work. In this latest version of the Kingduino Pro we’ve also moved the FTDI headers back so that the pins don’t hang over the edge of the board. We’ve also populated it with a sturdier power selection switch.

Features:
• USB connection off board
• 5V regulator
• Over current protected
• Reverse polarity protected
• DC input
• Resettable fuse prevents damage to board in case of short
• Power select switch acts as on/off switch

Specs:
Microcontroller: ATmega328
Clock Speed: 16MHz
Input Voltage: 5 ~ 12V DC
Max output: 150mA
Dimensions: 54 x 52mm

*Note: This is not an original Arduino brand product.
