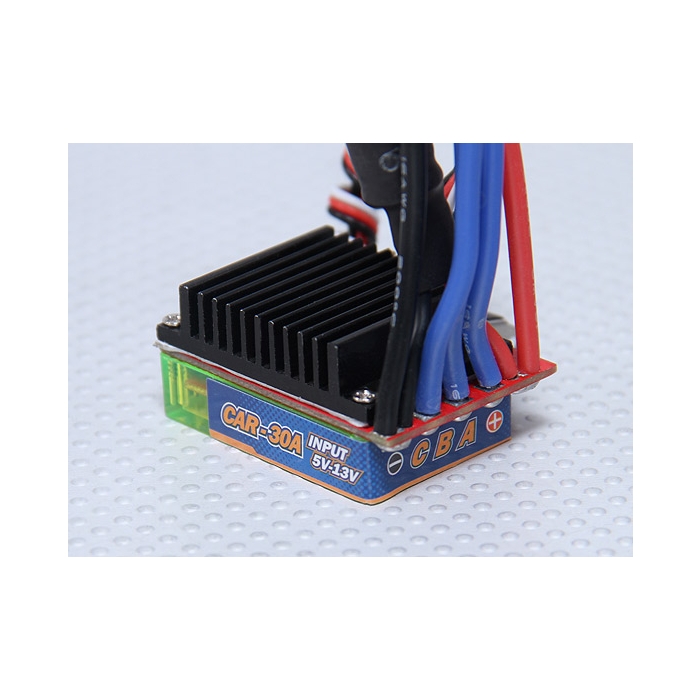

HobbyKing® ™ Brushless Car ESC 30A w/ Reverse
A standard car esc. providing forward and reverse with a large range of motor compatability for up to 240,000RPM motors.
Features:
Full protection feature including low voltage, over-heat, throttle signal lost, startup
protection and self-check.
Compatible with sensorless brushless motor.
Excellent startup performance, linear and quick throttle response.
Supports highest motor speed 240,000RPM(2 poles), 80,000RPM(6 poles) and 40,000(12 poles).
Easy to configure with program card.
System can automatically detect throttle neutral point, and neutral range is adjustable.
Three work modes for different environments.
4 step reverse force adjustment
5 step start force adjustment.
3 step brake force adjustment
5 step drag brake force adjustment,
4 step initial brake force adjustment.
Specification:
Input voltage: 2-3S Lithium batteries / 4~9 Ni-xx
Cont. Current: 30A
BEC output: 2A /5V (Linear)
Size( length X width X high): 45x32x20mm
Weight: 51g
A standard car esc. providing forward and reverse with a large range of motor compatability for up to 240,000RPM motors.
Features:
Full protection feature including low voltage, over-heat, throttle signal lost, startup
protection and self-check.
Compatible with sensorless brushless motor.
Excellent startup performance, linear and quick throttle response.
Supports highest motor speed 240,000RPM(2 poles), 80,000RPM(6 poles) and 40,000(12 poles).
Easy to configure with program card.
System can automatically detect throttle neutral point, and neutral range is adjustable.
Three work modes for different environments.
4 step reverse force adjustment
5 step start force adjustment.
3 step brake force adjustment
5 step drag brake force adjustment,
4 step initial brake force adjustment.
Specification:
Input voltage: 2-3S Lithium batteries / 4~9 Ni-xx
Cont. Current: 30A
BEC output: 2A /5V (Linear)
Size( length X width X high): 45x32x20mm
Weight: 51g
