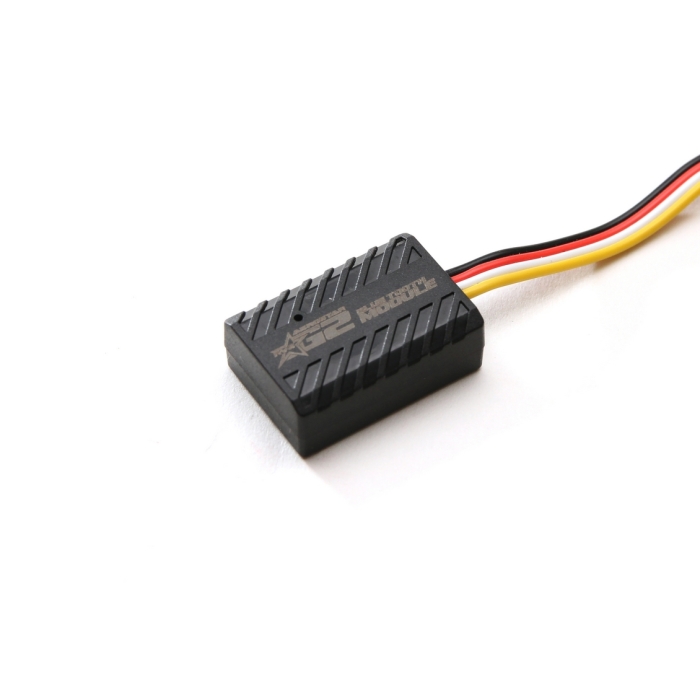

Aerostar RVS G2 HV ESC Bluetooth Module (Android Only)

This Bluetooth module makes the programming of your Aerostar RVS G2 HV electronic speed controller extremely easy, simply download the Aerostar App to your Android smartphone or smart device and you are ready to connect and set up your ESC (see under the "Files" tab for the link to the App).

Programmable settings using the Bluetooth module:
• Brake Type: Off/Soft/Mid/Hard
• Motor Timing: Auto/High/Mid/Low
• Motor Rotation: CW/CCW
• HEF (High Efficiency Function: On/Off
• Cell Count (HV Version): Auto/6S/8S/10S/12S/14S
• LVC (Low Voltage Cut-Off/HV): Off/2.3V/2.5V/3V/3.2V/3.2V/3.4V/3.6V
• Voltage Cut-Off Type: Reduce Power/Cut-Off Power
• Start-Up Power: Low/Med/Hard
• Restore Factory Defaults

The G2 HV factory defaults are shown in "Bold".

Please note: This Bluetooth module is only compatible with the Aerostar RVS G2 HV ESC range. It is incompatible with the non-HV series of G2 ESCs, earlier versions of the Aerostar RVS HV ESC, or the ZTW brand of ESC..
