Sensor

Easy to use, simply follow the links on the FrSKY website, connect the receiver to the STK and plug the STK into your computer via the USB port. The FrSKY STK updates all FrSKY receivers that support S.Port.

Reliably monitor the voltage of your battery with the Turnigy TGY-CVT01 Voltage Sensor.

As a great alternative to setting a timer, fly or drive your model based on the actual voltage of your battery. This way if your voltage drops quicker than usual due to harder running, you can avoid over discharge your pack. Or, perhaps you're having a nice relaxed day? Enjoy longer run times and don't cut yourself short.

This small, compact sensor is also a perfect way to add piece of mind when running a high performance model by allowing you to check that the battery voltage isn't dropping excessively under load.

For use with the TGY- i10 and i6 transmitters and TGY-iA10 and i6 V2 receivers.

Designed to daisy chain together with other TGY-C series sensors.

Features:
• High quality, compact sensor
• Futaba style input and output connectors
• Great for monitoring battery voltage, no need to set timers anymore
• Works with TGY- i10 and i6 transmitters and TGY-iA10 and i6 V2 receivers

Specs:
Voltage Range: 0~100V DC
Accuracy: +/- 0.1V
Input Voltage: 4.0~6.5V
Working Current: 9mA
Lead length: 195mm
Size: 31 x 15 x 8.5mm
Weight: 6.25g (inc leads and sensor)

Mount this handy device somewhere on your model where it can be seen clearly and plug it into a spare channel on your receiver, if no channel is available then use a Y lead. This unit will give you a visual check of your LiPoly or LiFe receiver battery each time you switch on. The easy to read series of LED's will show you whether it is safe to carry on or if the battery requires charging.

Specs:
Voltage Range: 6.6~7.4V
Dimensions: 40x21x2.5mm
Weight: 4g
Lead Length: 320mm
Plug: JR type

The Turnigy Voltage Protector helps prevent your receiver from dropping below its required operating voltage. This helps to eliminate "brownouts" and prevents your receiver from rebooting. It will also help reduce the load on your ESC's BEC and reduce the likelihood of glitching. Simply plug it into any spare channel on your receiver.

Operating Voltage : 3.2V - 11.1V (1s ~ 3s LiPo)
Capacitor voltage: 16v
Storage Capacity: 3300uf
Weight: 6.1g

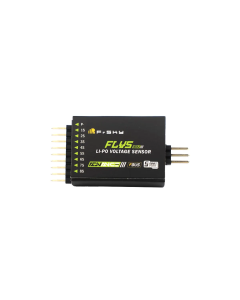

The FrSky FLVS ADV sensor is designed to measure the battery voltage of 2S~8S Li-Po batteries at 0.01V voltage resolution. The data can be transmitted via the F.Port or Smart Port (S.Port) of telemetry-enabled receivers such as the FrSky X8R, X6R, X4R, etc to compatible transmitters, such as the Taranis or other OpenTx radios. This is an obvious choice for accurate measurement of large-capacity Li-Po batteries.

FrSky has enhanced the performance and capability of its original sensors, resulting in the development of the new ADVANCE (ADV) series. All ADV sensors fully support the FBUS protocol and they are also S.Port compatible. With the FBUS protocol, the ADV sensors can be seamlessly paired with an FBUS-capable receiver which further simplifies model builds.

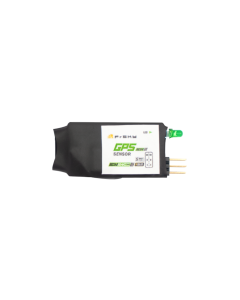

This advanced telemetry sensor incorporates a GPS module to provide useful variable directional information such as position, speed, distance, altitude, and UTC time. It can then be displayed in real-time on FrSky's Taranis transmitters, this can also be logged onto the radio's SD card. This location data is particularly useful for "lost aircraft situations" providing you with the coordinates of your lost model if it's still in radio range or its last known position if not.

The ADV series GPS sensor provides accurate time synchronization with GPS satellites, working with the integrated “Auto adjust from GPS” function in the ETHOS system. This ensures the radio and its telemetry are all in sync with an accurate time system, ensuring telemetry data is in sync with UTC time. This sensor will only work with the FrSky F.Port and Smart Port-enabled receivers. It does not provide autonomous GPS navigation or an RTH mode for your model; it is purely to provide data to your radio.
