Modules

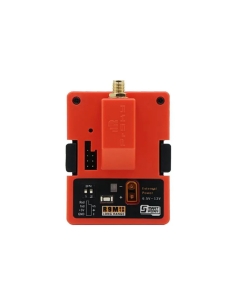

FrSky R9M radio control system is the first FrSky long range system which works in the frequency of 900MHz. The R9M module offers 4 switchable RF power outputs to so you can choose the appropriate power for different flight situations. Compared to another FrSky 2.4GHz long range receiver like the L9R, the R9 receiver has a longer operating range up to 10KM and above. Moreover, the R9 is also a redundancy receiver which can connect to another receiver to ensure the security of your aircraft.

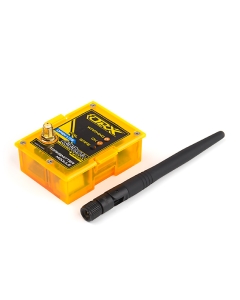

The Orange OpenLRS 433MHz TX Module is designed for use with APM flight control software and can be programmed to use your choice of protocol and any channel in the 433MHz range. Fully user-customizable, the transmitter system can even be programmed to utilize additional features such as telemetry, operative remote control via stics (cPPM ready), and mission control.
It is equipped with Bluetooth technology so the user can connect it to a tablet, smartphone, or PC. All telemetry data, mission planning, and flight modes will be available in APM Mission Planner on PC or Droid Planner, or similar apps for Android devices. Thanks to the Bluetooth function, no additional leads are required to setup/program the transmitter module.

The OrangeRX 2.4Ghz transmitter module offers a simple, convenient and inexpensive way to utilize your module-based JR/Turnigy/Taranis compatible transmitter to enable its compatability with any DSM2 and DSMX type receivers.

Unlike standard modules which have a fixed protocol, this unit switches automatically between DSM2 compatible (1024/22ms, 2048/11ms) and DSMX compatible (22ms, 11ms) during the binding process. It is also manually selectable using a long press of the bind button.

This version also has a major firmware change that allows for the module to work with multiple receivers without rebinding.

Simply remove your existing module, plug in the OrangeRX  module and you are ready to bind to any DSMX, DSM2 compatible receivers.

Features:
• Works with any JR/Turnigy/Taranis compatible module-based transmitter
• Auto and manual mode switching: DSM2 compatible 1024/22ms, DSM2 compatible 2048/11ms, DSMX compatible 22ms, DSMX compatible 11ms
• Easy to access bind button
• Easy to use ID button
• Range check mode (1mW)
• Full range system
• Accepts PPM from 4 - 12 channels
• Outputs from 4 - 12 channels according to PPM provided
• Low current consumption

Specs:
Compatibility: JR style 5 pin module-based transmitters (JR/Turnigy/Taranis compatible) (Not compatible with Turnigy 9X)
2.4Ghz protocol: DSMX / DSM2 compatible
Input Voltage: 6 - 18VDC
Output Power: -18dBm
Current Consumption: 100mA max
Radio Type: Full range system
Firmware version: 1.2

Includes:
OrangeRX DSMX/DSM2/Devo Compatible 2.4Ghz transmitter module
2.4Ghz antenna
For manual please see files tab below.

Note:
OrangeRX Modules use a unique Global ID for binding. Incase of binding issues with other branded receivers press the "Change ID" button on module to change the Module ID to another unique value reserved for that module. There are over 4 billion unique ID's assigned to OrangeRx modules.

Note:
This is not a Spektrum DSM2/X, Walkera product, neither is it a copy of a Spektrum DSM2/DSMX/Walkera product. The Spektrum and DSM2 / DSMX brand is a trademark of Horizon Hobbies USA. OrangeRX products are not black market or fake Spektrum products. OrangeRx quality is guaranteed.

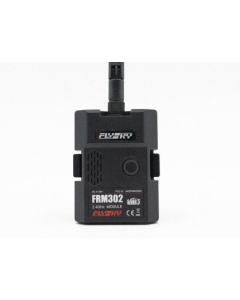

The FTM302 adopts FLYSKY's third-generation automatic frequency hopping digital system, AFHDS 3. It uses a single antenna, a bidirectional transmission system in a compact design with support for multiple signal inputs. Supports external power and is compatible with standard JR-type module bays.

The FTM302 offers a long range of up to 3.5km + on the EU default setting of 20dBm (changeable through the management system), low latency, less than 10ms, and allows for online updates and managing the module via the FLYSKY Remote Control Assistant. Power to the module can either be internal, or an external power source of 5~28V can be connected via the built-in XT30 connector. The module also has a built-in fan which automatically turns on if the temperature reaches 45°C to ensure the system remains safe, this can happen when the module is being used with higher voltages.

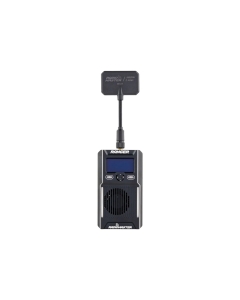

The RadioMaster Ranger is the pinnacle of ExpressLRS module design, it is not only built to last but looks great as well. It has a rugged CNC machined aluminum case that aids the high-efficiency cooling system as a heat sink. Other features are a state-of-the-art high-contrast OLED display, a directional menu key, and two assignable shortcut keys, this makes the Ranger easily adjustable while flying. The Ranger ELRS module is up to any task and provides all the necessary power and functionality.

The RadioMaster Ranger is the pinnacle of ExpressLRS module design, it is not only built to last but looks great as well. It has a rugged CNC machined aluminum case that aids the high-efficiency cooling system as a heat sink. Other features are a state-of-the-art high-contrast OLED display, a directional menu key, and two assignable shortcut keys, this makes the Ranger easily adjustable while flying. The Ranger ELRS module is up to any task and provides all the necessary power and functionality.

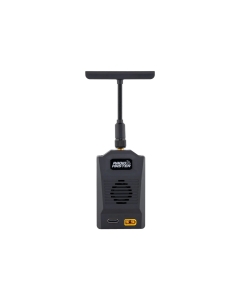

Want to experience the efficiency, long range, and low latency of the ELRS protocol without purchasing a new radio? Then RADIOMASTER has you covered!

The Ranger Nano 2.4GHz ELRS module represents the cutting edge in ELRS technology, and it's compatible with the RADIOMASTER Zorro series and more. It features F-1000Hz refresh rates, a high-efficiency cooling system, WiFi, and Bluetooth connectivity, and a T antenna. Enjoy all that ELRS has to offer with a RADIOMASTER Ranger Nano TX module.
