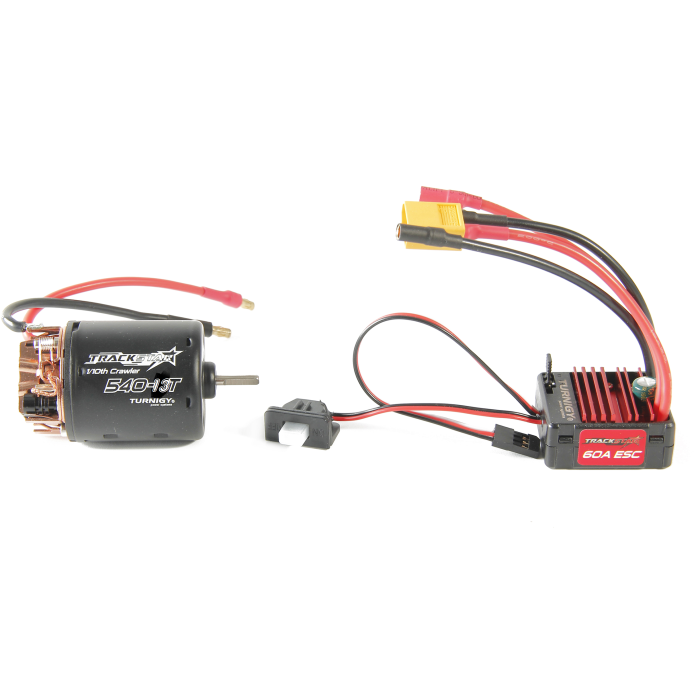

Turnigy Trackstar 540-13T Brushed Motor & 60A ESC Combo for 1/10th Crawler
31,52 €
Out of stock
SKU
9912000058-0
The motor is a powerful, high torque open brush gear 540 motor, brushes can be changed when they wear out and this is matched to a 60amp ESC. The Trackstar Crawler ESC has been specifically designed for RC crawlers and brushed motors. It gives an excellent linear response and driving feel, has a low internal resistance, excellent heat dissipation, and multiple protection features (see features below). It can be easily programmed with the optional pocket-sized LED program card (see related items) with a variety of different settings including; Initial Start Force, Low Voltage Cut-Off, Initial Drag Brake Force, Maximum Reverse Force, and 3 Start Modes.
The Turnigy Trackstar motor combos have been extremely popular in the car, buggy, and truck world for a long time. The Turnigy TrackStar Crawler series offers top performance and excellent value in an easy to use combo package. With this system, the 540 brushed motor and ESC are matched for best performance which saves you the hassle of choosing separate components yourself. The combos are plug-n-go with motor connectors and an XT60 plug already fitted, just install a pinion gear, and you're ready to run!
The motor is a powerful, high torque open brush gear 540 motor, brushes can be changed when they wear out and this is matched to a 60amp ESC. The Trackstar Crawler ESC has been specifically designed for RC crawlers and brushed motors. It gives an excellent linear response and driving feel, has a low internal resistance, excellent heat dissipation, and multiple protection features (see features below). It can be easily programmed with the optional pocket-sized LED program card (see related items) with a variety of different settings including; Initial Start Force, Low Voltage Cut-Off, Initial Drag Brake Force, Maximum Reverse Force, and 3 Start Modes.
Features:
• Specially designed for 1/10th scale crawlers
• Excellent linear throttle response and driving feel
• Programmable with the Turnigy LED program card
• Low internal resistance and excellent heat dissipation
• Multiple protection features: Low voltage cut-off protection for Lithium and Nimh batteries, over-heat protection, throttle signal loss protection
Specs (ESC):
Continuous Current: 60A
Burst Current: 320A
Resistance: 0.0014ohm
Battery: 2~3cells Lipo, 4~9cells Nimh
BEC output: 7.4V/2A (switch mode)
Motor type: Brushed
Running mode: Forward/reverse
Dimension: 32 x 37 x 18mm
Specs (Motor):
Model: 540/S Slot
No of Turns: 13
Voltage: 7.4V
No Load Current: 1.3~1.9A
Peak Current: 62~96A
No Load RPM: 16700
Torque: 2600g.cm
Rotation: CCW
Shaft Diameter: 3.175mm
Weight: 165g
Includes:
60A Trackstar Crawler ESC
540-13T Trackstar Brushed Motor
Please note: A copy of the instruction leaflet is available under the "Files" tab.
