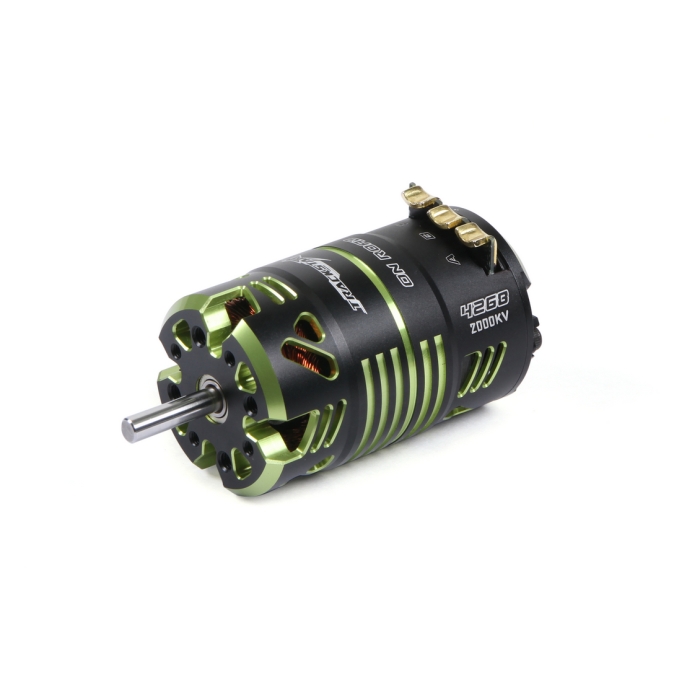

Turnigy TrackStar 4268-2000KV (4S) 1/8th Scale Sensored High-Torque Brushless Motor

The Turnigy TrackStar high-torque sensored brushless motors offer outstanding performance at an incredible price! They have been designed to be powerful, and efficient, and due to the T6 aluminum case dissipating the heat they run at very low temperatures.

The hand-wound, high-purity copper windings, powerful sintered neodymium magnets, 0.2mm ultra-thin silicon steel stator, and high-speed oversized bearings make these motors the perfect choice for your 1/8th scale vehicle.
They also feature adjustable timing, which can be adjusted in both directions for CW and CCW rotation. This allows for fine-tuning the performance of your vehicle while the Hall-effect sensor ensures smooth start-ups and acceleration.

The TrackStar 1/8th brushless motors have excellent waterproof and dustproof properties so they can easily cope with wet, or dusty off-road environments. They are suitable for 1/8th scale on-road, and off-road cars, trucks, and buggies. These motors also comply with ROAR, IFMAR, BRCA, and EFRA specifications.

Features:
• Sensor-based for excellent torque and smoothness even at slow speeds
• Adjustable timing for fine-tuning and CW or CCW rotation
• CNC machined T6 aluminum motor case for excellent heat dissipation
• High purity copper windings and 0.2mm ultra-thin silicon steel stator
• Powerful sintered neodymium magnets and high-speed oversize bearings
• Removable/replaceable Rotor
• Water and dustproof

Specs:
Type: Turnigy TrackStar 4268-2000KV High-Torque Sensored Brushless Motor
Scale: 1/8th
Poles: 4 (12 slots)
KV: 2000KV
Max RPM: 50,000
Sensored: Yes (Standard 6-pin lead)
Sensor Lead: Included
Max Voltage: 14.8V (4S)
Max Current: 97A
Resistance: 0.0099 ODM
Motor Diameter: 40.8mm
Motor Length: 68.7mm
Shaft Diameter: 5mm
Shaft Length: 19.5mm
Mounting Screw Threads: 4 x M3 or 4 x M4
Mounting Screw Centers: 25.2mm
Weight: 320g

Included:
1 x Turnigy TrackStar 4268-2000KV (4S) 1/8th Scale Sensored High-Torque Brushless Motor
1 x Sensor Lead

Please note: A copy of the user manual is available under the "Manuals/Files" tab above.
