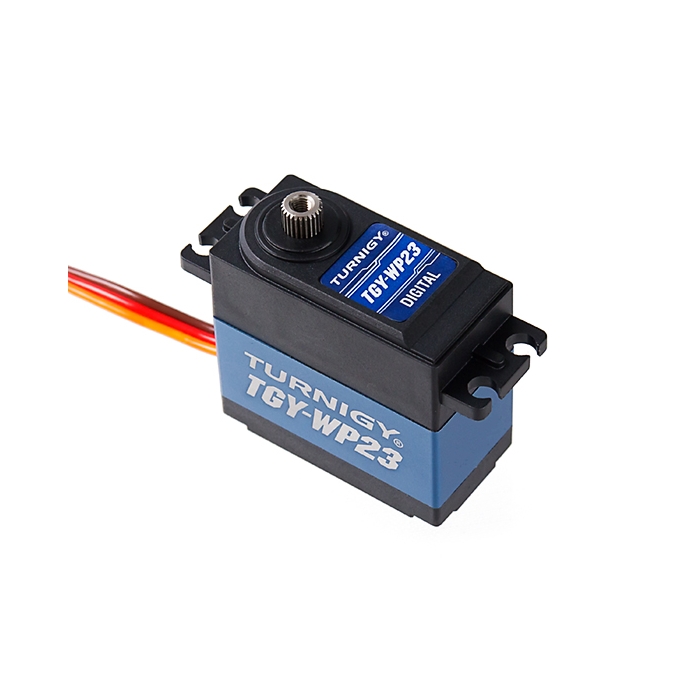

Turnigy TGY-WP23 Waterproof Metal Gear Digital Servo 23kg / 0.12sec / 75g

The Turnigy TGY-WP23 is one of the latest standard size digital servos that has an aluminum center case which acts as a heatsink and gears made steel. This servo has a digital amplifier which helps it achieve an incredible 23kg of holding power and is no slouch in the speed department either with a speed of 0.12sec.

This servo is also waterproof making this a great servo for crawlers, 1/8 scale trucks and buggies and as a rudder servo for fast, powerful boats. It comes with a resin filled nylon top and bottom case and a blue anodized center case with laser-etched graphics.

Features:
• High speed 0.12sec @ 6v
• High torque 23kg @ 6v
• Digital amplifier
• Waterproof
• Suitable for scale crawlers and 1/8 scale buggies, trucks and boats
• Aluminum center case
• Metal gears

Specs:
Stall Torque: 18kg-cm @ 4.8v
Stall Torque: 23kg-cm @ 6v
Speed: 0.14sec/60° @ 4.8v
Speed: 0.12sec/60° @ 6v
Operating Voltage: 4.8 ~ 6.6v
Idle Current: 4mA @ 4.8v ~ 5mA @ 6v
Stalled Current: 2500mA @ 4.8v ~ 2800mA @ 6v
Amplifier: Digital
Weight: 75g
Bearing Type: 2BB
Gear Type: Metal
Motor: Coreless
Output Gear Splines: 25T
Operating Temperature: -20℃~60℃
Neutral Position: 1500μs
Size: 40.7 x 20.5 x 38.5mm
Servo Connector: Std JR type
Servo Lead Length: 300mm

Included:
1 x Turnigy TGY-WP23 servo
2 x Servo horn
4 x Anti-vibration grommets
4 x brass ferrules
4 x Mounting screw
1 x Servo horn screw with washer
