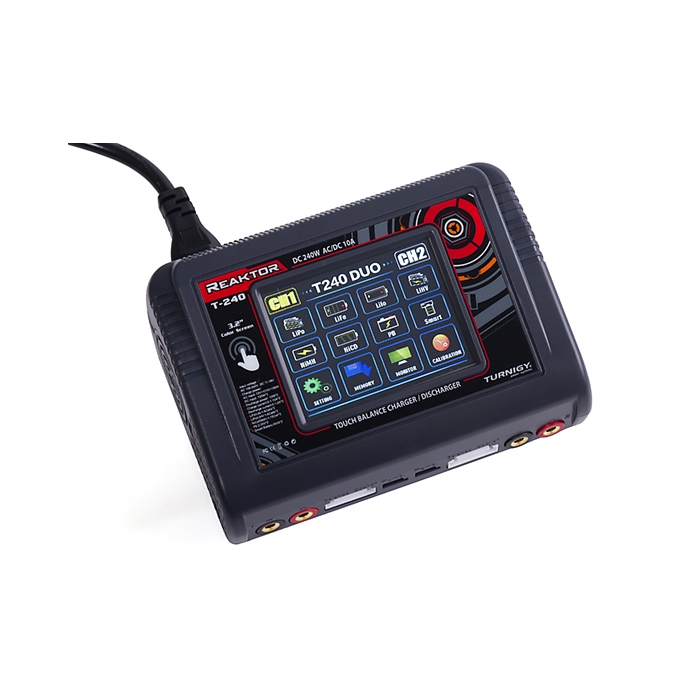

Turnigy (EU Plug) Reaktor T240 LiHV AC/DC 1~6S 10A 2 x 150W Touch Screen Charger

Turnigy has moved into the next decade of the 21st century with the T240 touchscreen charger. It can charge Lipo/Lilo/LiFe/LiHV/NiMH/NiCd and lead acid batteries. It also has battery management, security settings, and operation data memory, and can charge two different battery chemistries simultaneously. Programming is very straightforward by using the 3.2-inch color LCD touchscreen display.

The Reaktor T240 is capable of accepting an input power supply of 11~18V DC and 100~240V AC which makes it perfect for use at home in the workshop or for when you go out to the flying field or race track. The AC supply is capable of charging on both channels at 10A to a max of 150 watts. On a DC supply, it can charge on both channels at 10A but to a max of 120 watts. The T240 also has a discharge facility of 2 x 0.1~2A for discharging your batteries. It can support power distribution in AC mode, total power of 150W (CH1+CH2=150Watt). and in DC mode, works at 2 x 120W. Max charge current can reach 10A in each port in both AC and DC modes.

Features:
• Twin-channel, charge two different kinds of batteries simultaneously.
• High power, single port max 150W, supports power distribution.
• Practical for a variety of batteries including LiPo/LiFe/Lilon/NiCd/NiMH/Pb/LiHV.
• Automatic identification of Li-Po cell counts
• Adjustable digital DC Power.
• Built-in smart cooling fan for easy heat dissipation.
• Multiple protection including automatic charge current limit, delta-peak sensitivity, capacity limit, processing time limit, and temperature threshold.

Specs:
Type: Turnigy Reaktor T240 LiHV AC/DC 1~6S 10A 2 x 150W Touch Screen Charger
AC Input Voltage: 100~240V
DC Input Voltage: 11~18V
Charge Power AC: 150W on both channels
Charge Power DC: 120W on both channels
Charge Current: 0.1~10A on both channels
Discharge Current: 0.1~2A on both channels
Number of Cells: 1~6 Lilon/LiPo/LiLo/LiFe/LiHV on both channels
Number of Cells: 1~15 NiCd/NiMH on both channels
Number of Cells: 2~20V Pb on both channels
Smart Battery: I/II/III on both channels
Dimensions: 145x105x64mm
Weight: 480g
Mains Plug: EU type

Included:
1 x Turnigy (EU Plug) Reaktor T240 LiHV AC/DC 1~6S 10A 2 x 150W Touch Screen Charger
2 x XT60 charge leads
2 x Adapter leads with crocodile clips
2 x Balance boards
2 x Balance board leads
1 x Std Tamiya adapter lead
1 x Mini Tamiya adapter lead
1 x DC input lead
1 x Mains lead with EU plug

Please note: There is a copy of the User Manual under the "Manuals/Files" tab.
