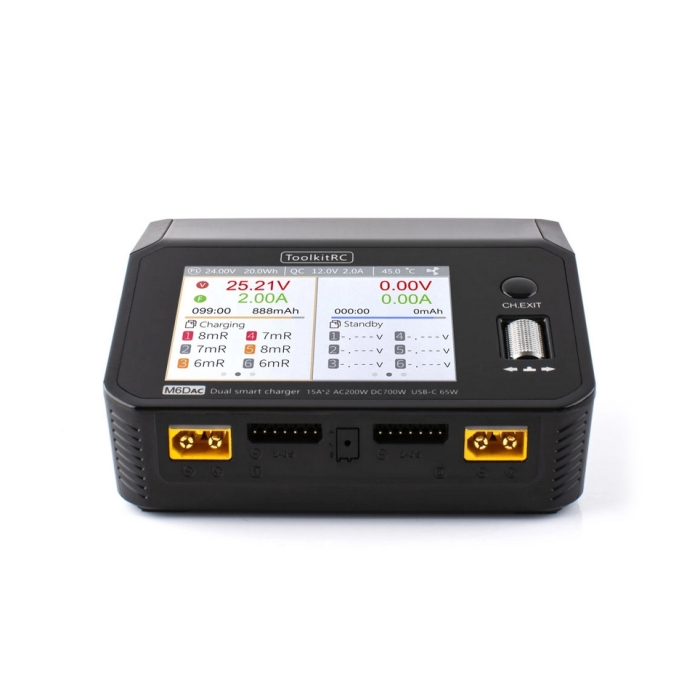

ToolkitRC M6DAC (EU Plug) Dual 1~6S 15A 350W AC/DC Balance Charger/Discharger

The ToolkitRC M6DAC is a versatile dual battery charger that integrates functions such as charging, synchronous charging, discharging, cycling, smart consumer-grade drone battery charging and has a multilingual user interface. The M6DAC has a built-in 200W power supply that allows it to be powered from a 100~240V AC mains power source. It also has the ability to operate on a 7~28V DC power supply which is perfect for charging at the flying field, race track, or boating lake.

The M6DAC is capable of charging two batteries at up to 350W each, or, if both channels are used for one battery pack, then it can charge the pack at up to a very impressive 700W. A wide variety of different chemistry batteries can also be charged on the M6DAC, these include, LiPo, LiHV, LiFe, and Li-ion @ 1~6S, NiMh @ 1~16S, and Pb @ 1~10S.

The M6DAC is simple and straightforward to use, it has a large, easy-to-read, wide-angle, back-lit, IPS 3.5"x480x320 pixel full-color LCD screen, angled for easy viewing, simple to use metal, menu scrolling/enter wheel, and a ch/exit button. Inputs include an AC and DC XT60 socket, and outputs include 2 x XT60 charging ports, 2 x 2~6S balance ports, and a USB port. When required, the powerful, intelligent, high-flow cooling fan cuts in to keep the internal temperature down to avoid any overheating of the unit.

The ToolkitRC M6DAC balance charger/discharger is a must for every modeler's workshop due to its versatility of being able to charge two batteries simultaneously, its ability to run from AC and DC power sources, and its easy-to-use, intuitive programming menus.

Features:
• Dual AC/DC power inputs, 100~240V AC or 7~28V DC
• Will charge two battery packs simultaneously
• Synchronous mode allows both channels to be used to charge one battery at up to an impressive 700W
• Multilingual user interface
• Ability to smart charge consumer-grade drone batteries such as those used in the DJI Mavic, Phantom, and Inspire
• XT60, and 65W USB outputs
• Large, easy-to-read, wide-angle, back-lit, IPS 3.5"x480x320 pixel full-color LCD screen

Specs:
Type: ToolkitRC M6DAC Dual 1~6S 15A 350W AC/DC Balance Charger/Discharger
Input Voltage: 7~28V DC/100~240V AC
Charging Power: 2 x 0.1~15A@350W
Synchronous Charging Power: 1 x 0.1~25A@700W
Battery Types: LiPo/LiHV/LiFe/Li-ion@1-6S, NiMh@1-16S, Pb@1-10S
USBC Output: 3.25A@20.0V (65W)
USBC Protocol: PD/QC/AFC/FCP/SCP/PE/SFCP/VOC
Display Screen: IPS full color, wide angle, backlit, 3.5"x480x320 pixel LCD
Balance Current: 1000mA@2~6S
Internal Resistance Measuring: 1~100mR@1~6S
Dimensions: 127x106x63mm
Weight: 700g
Mains Input Lead: Mains cable w/EU type plug

Included:
1 x ToolkitRC M6DAC Dual 1~6S 15A 350W AC/DC Balance Charger/Discharger
1 x Mains lead w/EU type plug

Please note: A copy of the user manual which includes a full list of all the functions is available under the "Manual/Files" tab above.
