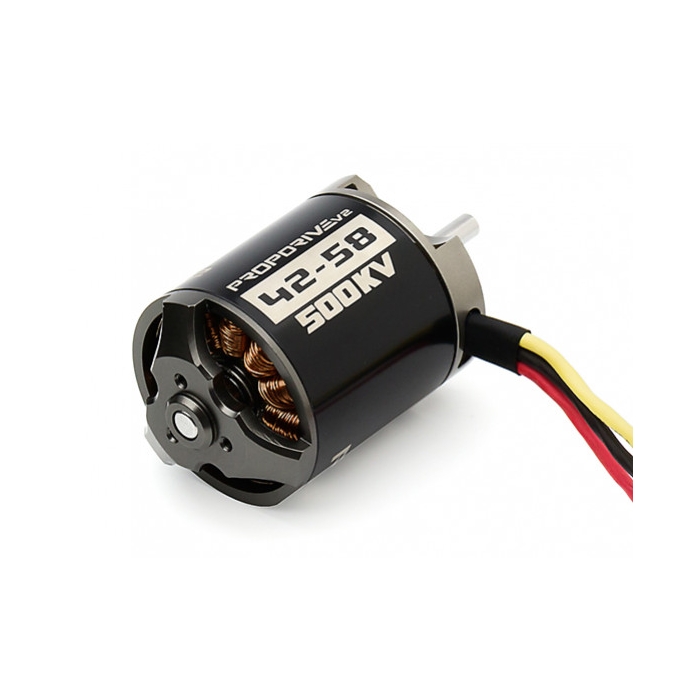

PROPDRIVE V2 4258 500KV Reversed Shaft Brushless Outrunner Motor

PROPDRIVE v2 motors are designed to perform right out of the box with tight windings, smooth bearings, correctly rated magnets, precision cut stator, and balanced rotors.

We design and build the PROPDRIVE v2 motors in-house, allowing us to control every aspect of production. We control the entire production line from material sourcing to machining, balancing, and final assembly. PROPDRIVE motors can be trusted to provide years of reliable service at a price every modeler can afford.

We have included a collet-style adapter, as well as a bolt-on prop adapter.

Specs:
Model: PROPDRIVE V2 4258 500KV w/Reversed Shaft
KV: 500
Max current: 60A
ESC: 70~80A
Cell count: 5S~7S LiPo
Pole Count: 14
Bolt holes: 25mm
Bolt thread: M3
Shaft: 5mm
Connectors: 4mm Bullet
Weight: 300g

Performance Data (5S):
15x6: 796W, 45A, 3338g static thrust
15x8: 970W, 56A, 4151g static thrust
16x7: 1053W, 60A, 4259g static thrust

Performance Data (6S):
13x6.5: 896W, 42A, 3567g static thrust
13x8: 1042W, 50A, 4214g static thrust
14x7: 1170W, 56A, 4439g static thrust

Performance Data (7S):
12x6: 995W, 40A, 3637g static thrust
12x8: 1232W, 50A, 4608g static thrust
13x7: 1252W, 58A, 4930g static thrust
