Sistemi di Alimentazione

An ACE RC Ripper 3720-1100KV brushless motor with prop shaft to upgrade your  H-King MX2 Extreme 30E.

Combinato con un 10x6 e-prop questo motore può spingere fuori sopra 1000g in spinta su un lipo di configurazione 3S1P.
Buon per foamies più grandi o parkflyers dove circa è richiesta 150W.

Spec.
Kv: 1050rpm / v
Corrente di funzionamento: 6A ~ 16A
Corrente di picco: 19A
Peso: 56g
Dimensioni: 27,6 x 32mm
Dimensione stelo: 3,175 millimetri

Il kit include gli accessori pieni, tra cui connettori proiettile d'oro, risparmiatore puntello, il montaggio, gli anelli di gomma di ricambio, shrink tubo e viti.

performance Data
Tensione Corrente Prop spinta
11.1V 8.6A 8040 538g
11.1V 13.7A 9050 810g
11.1V 16.7A 1060 650g

Turnigy Aerodrive SK3 3536 Series sostituzione Shaft Set

Spec.
Lunghezza del pozzo: 58mm
Diametro albero: 5mm

Turnigy Aerodrive SK3 6354 sfera Serie sostituzione dei cuscinetti Set (3pcs / bag)

Spec.
1x 19 millimetri x 8mm x 6mm
2x 12 millimetri x 8mm x 3,5 millimetri

adattatore Elica per DYS BE 1806 motore 2 x CW

3730-1000kv Turnigy aria motore brushless

Specifiche tecniche:
Dimensioni: 37 mm x 30 millimetri
Peso: 112g Inc 4 millimetri in oro connettore (130g inc tutti i raccordi)
Kv: 1000rpm / V
Voltaggio: 11.1V ~ 14.8V (3s ~ 4s)
Potenza massima: 580W
Max corrente: 42A
Corrente a vuoto: 1.6A
Diametro del pozzo: 4mm
Spinta: 1700g
ESC: 60A

Specifiche.
RPM / V: 1350Kv
Cell Count: 2s ~ 3s Lipoly
Di corrente massimo: 10A
Max Watt: 120W
Corrente a vuoto: 0.3A / 7.4V
Dimensioni: Φ28mm × 16 millimetri
Albero: 3mm
Peso: 26g
Spinta max: 245g

Un potente, leggero motore brushless micro che è ideale per i piccoli modelli tipo coperto o addirittura parkfly. Ben lavorato ed equilibrato, ferita a mano con rame di spessore calibro, fornito con X monte, viti di montaggio, i connettori 2 mm e il driver prop.

Specifiche:
Modello: LD1510A-02-P
Kv: 2200rpm / v
Peso: 16.5g (con fili e di montaggio)
Voltaggio: 7.4 ~ 11.1V
Corrente a vuoto: 0.2A
Max corrente: 6A
Potenza massima: 60 watt
Diametro albero: 2mm
Diametro del motore: 18mm
Monte Bolt centri dei fori: 25mm
Bullone di montaggio Formato: 2mm
Connettore: 2mm
ESC consigliato: 10A

LDPOWER MT2206-1900KV Brushless Multicopter motore (CW)

Innovatori nella tecnologia multicopter, LDPOWER, hanno rilasciato la loro serie a lungo atteso di motori premium multicopter. Questi sono stati rigorosamente testati per garantire prestazioni eccellenti, affidabilità e durata.

Questi motori sono facili da installare, molto efficiente e non hanno rumore. Essi sono disponibili in entrambi i formati CW e CCW.

I motori LDPOWER sono di qualità premium e sarà sicuramente rispondere alla necessità dei costruttori gravi e volantini di quad / multis ovunque.

Specifiche:
KV (RPM / V): 1900KV
Cellule LiPoly: 7.4V-11.1V (2S-3S)
Potenza massima: 323.8W
Max Amp: 25.7A
Dimensioni (Dia.xL): 29.5 x 27.7mm
ALBERO MOTORE: 3mm
Pozzo del puntello: 5mm
Peso: 34.7g
Distanza tra i fori Bolt: 19mm-M3 * 2 16 millimetri-M3 * 2
Connettori: 2 millimetri proiettile

Volt Prop Throttle Ampere Watts RPM di spinta (g)
7.4 6030 30% 1,8 13.32 8792 85
7.4 6030 50% 2.7 19.98 10341 123
7.4 6030 75% 3.9 28.86 11949 171
7.4 6030 100% 5,3 39.22 13656 228
7.4 6045 30% 2,5 18,5 7107 115,5
7.4 6045 50% 3,7 27.38 8607 164,5
7.4 6045 75% 6.0 44.4 10216 240
7.4 6045 100% 9.2 68.08 12003 335
11,1 6030 30% 3,1 34.41 12140 180
11,1 6030 50% 4,6 51.06 15621 249
11,1 6030 75% 6,9 76.59 16420 350
11,1 6030 100% 10.3 114.33 18953 480
11,1 6045 30% 3,8 42.18 9592 210
11,1 6045 50% 5.8 64.38 11258 292.5
11,1 6045 75% 10.1 112.11 13817 430,5
11,1 6045 100% 16.2 179.82 16315 594,5

22 millimetri 280 C-Shape Motor Mount (stile morsetto)

Spec.
Diametro: 22mm (Fits 280 Dimensioni Inrunner)
Lunghezza: 31,5 millimetri
Peso: 9g

Stile Motore Campana Turnigy L2210-1650

Spec.
Kv: 1650 rpm / v
Voltaggio: 7.4 ~ 11.1v (2 ~ 3s)
Corrente a vuoto: 1.3A
Max corrente: 22A
Potenza massima: 250W
Albero Formato: 3mm
Lunghezza del pozzo: 28mm
Dimensioni: 28mm x 17mm
Spinta: 520g
Peso: 50g

Aggiorna il tuo modello di motore a gas dimensioni 100cc con motore outrunner Turnigy Rotomax 100cc Brushless. Questo motore fornirà energia pulita ed efficiente per il vostro aereo su larga scala senza il disordine e il fastidio di carburante.

Se combinato con una batteria 12s Lipoly, 27x12 Elica e un 250Amp ESC il Rotomax motore fornirà incisivo, potenza reattiva che solo una configurazione elettrica in grado di fornire.

Questo motore è specificamente adatto per la fibra di carbonio e le eliche in legno e dispone di un IC stile 6 disegno del foro del bullone. L'albero è stato anche sfruttato per soddisfare un bullone 5 mm a fare il montaggio di un filatore di vostra scelta facile.

Spec.
Batteria: 12 cellule / 44.4V
RPM: 167kv
Max corrente: 170A
Watts: 7992w
Corrente a vuoto: 44V / 4.5A
Resistenza interna: 0.021 Ohm
Peso: 2074g
Conte Palo: 24
Diametro del pozzo: 10mm
Suggerita ESC: 250A 12S compatibile
Suggerita Prop: 27x12

Aggiorna il tuo modello di motore a gas da 50cc con il motore outrunner senza spazzole Turnigy RotoMax da 50cc. Questo motore fornirà energia pulita ed efficiente per il tuo aereo su larga scala senza il disordine e il fastidio del carburante.

Features:
• Precision bearing design: Equipped with high-precision bearings that effectively reduce friction and operating noise, delivering smoother rotation and enhanced overall stability.
• Steel output shaft: Features a high-strength steel shaft with excellent wear and impact resistance, ensuring dependable performance even under heavy loads.
• Anodizing process: The housing is treated with an anodized finish to improve corrosion resistance while enhancing surface texture and long-term durability.
• 16×16mm standard mounting hole pattern: Designed to meet common installation specifications, offering strong compatibility for quick and secure mounting or replacement.
• Multi-strand winding structure: Utilizes a multi-strand winding design to improve electrical conductivity and power output, resulting in more stable and consistent performance.
• 120mm 20AWG silicone wire: Comes with a flexible, heat-resistant 20AWG silicone wire that provides ample length for easier routing and long-lasting reliability.

Features:
• Precision bearing design: Equipped with high-precision bearings that effectively reduce friction and operating noise, delivering smoother rotation and enhanced overall stability.
• Steel output shaft: Features a high-strength steel shaft with excellent wear and impact resistance, ensuring dependable performance even under heavy loads.
• Anodizing process: The housing is treated with an anodized finish to improve corrosion resistance while enhancing surface texture and long-term durability.
• 16×16mm standard mounting hole pattern: Designed to meet common installation specifications, offering strong compatibility for quick and secure mounting or replacement.
• Multi-strand winding structure: Utilizes a multi-strand winding design to improve electrical conductivity and power output, resulting in more stable and consistent performance.
• 120mm 20AWG silicone wire: Comes with a flexible, heat-resistant 20AWG silicone wire that provides ample length for easier routing and long-lasting reliability.

Features:
• Precision bearing design: Equipped with high-precision bearings that effectively reduce friction and operating noise, delivering smoother rotation and enhanced overall stability.
• Steel output shaft: Features a high-strength steel shaft with excellent wear and impact resistance, ensuring dependable performance even under heavy loads.
• Anodizing process: The housing is treated with an anodized finish to improve corrosion resistance while enhancing surface texture and long-term durability.
• 16×16mm standard mounting hole pattern: Designed to meet common installation specifications, offering strong compatibility for quick and secure mounting or replacement.
• Multi-strand winding structure: Utilizes a multi-strand winding design to improve electrical conductivity and power output, resulting in more stable and consistent performance.
• 120mm 20AWG silicone wire: Comes with a flexible, heat-resistant 20AWG silicone wire that provides ample length for easier routing and long-lasting reliability.

Features:
•A brand new design with a rounded bell and stronger attachment points for increased durability.
•Fully mirror-polished finish that shines and glistens with even the smallest hint of light.
•Upgraded N52SH curved arc magnets for tighter airgap and better performance.
•EZO 9mm bearing for unparalleled smooth operation.
•16x16mm motor mounting

Features:
•A brand new design with a rounded bell and stronger attachment points for increased durability.
•Fully mirror-polished finish that shines and glistens with even the smallest hint of light.
•Upgraded N52SH curved arc magnets for tighter airgap and better performance.
•EZO 9mm bearing for unparalleled smooth operation.
•16x16mm motor mounting

Features:
•A brand new design with a rounded bell and stronger attachment points for increased durability.
•Fully mirror-polished finish that shines and glistens with even the smallest hint of light.
•Upgraded N52SH curved arc magnets for tighter airgap and better performance.
•EZO 9mm bearing for unparalleled smooth operation.
•16x16mm motor mounting

Features:
•X2807 brushless motor is the upgraded motor, 12N14P high torque motor design, which is smooth, reliable and powerful.
•The motor is characterized by support 2~6S lipo. Suitable for multicopter, RC aircraft, drone.
•Motor KV 1300KV, shaft size 4 x 14mm, motor mount M3*19, which is compatible with 6-7inch propeller.
•FPV brushless motor provides the most incredible power and thrust in the lightest weight. Give you a more satisfied experience with your model.
•Each rotor was dynamically balanced with high speed. High purity copper windings maximize efficiency, good insulation and heat resistance.

Features:
•X2807 brushless motor is the upgraded motor, 12N14P high torque motor design, which is smooth, reliable and powerful.
•The motor is characterized by support 2~6S lipo. Suitable for multicopter, RC aircraft, drone.
•Motor KV 1700KV, shaft size 4 x 14mm, motor mount M3*19, which is compatible with 6-7inch propeller.
•FPV brushless motor provides the most incredible power and thrust in the lightest weight. Give you a more satisfied experience with your model.
•Each rotor was dynamically balanced with high speed. High purity copper windings maximize efficiency, good insulation and heat resistance.

The motor is a powerful, high torque open brush gear 540 motor, brushes can be changed when they wear out and this is matched to a 60amp ESC. The Trackstar Crawler ESC has been specifically designed for RC crawlers and brushed motors. It gives an excellent linear response and driving feel, has a low internal resistance, excellent heat dissipation, and multiple protection features (see features below). It can be easily programmed with the optional pocket-sized LED program card (see related items) with a variety of different settings including; Initial Start Force, Low Voltage Cut-Off, Initial Drag Brake Force, Maximum Reverse Force, and 3 Start Modes.

The motor is a powerful, high torque open brush gear 540 motor, brushes can be changed when they wear out and this is matched to a 60amp ESC. The Trackstar Crawler ESC has been specifically designed for RC crawlers and brushed motors. It gives an excellent linear response and driving feel, has a low internal resistance, excellent heat dissipation, and multiple protection features (see features below). It can be easily programmed with the optional pocket-sized LED program card (see related items) with a variety of different settings including; Initial Start Force, Low Voltage Cut-Off, Initial Drag Brake Force, Maximum Reverse Force, and 3 Start Modes.

The motor is a powerful, high torque open brush gear 540 motor, brushes can be changed when they wear out and this is matched to a 60amp ESC. The Trackstar Crawler ESC has been specifically designed for RC crawlers and brushed motors. It gives an excellent linear response and driving feel, has a low internal resistance, excellent heat dissipation, and multiple protection features (see features below). It can be easily programmed with the optional pocket-sized LED program card (see related items) with a variety of different settings including; Initial Start Force, Low Voltage Cut-Off, Initial Drag Brake Force, Maximum Reverse Force, and 3 Start Modes.

The motor is a powerful, high torque open brush gear 540 motor, brushes can be changed when they wear out and this is matched to a 60amp ESC. The Trackstar Crawler ESC has been specifically designed for RC crawlers and brushed motors. It gives an excellent linear response and driving feel, has low internal resistance, excellent heat dissipation and multiple protection features (see features below). It can be easily programmed with the optional pocket sized LED program card (see related items) with a variety of different settings including; Initial Start Force, Low Voltage Cut-Off, Initial Drag Brake Force, Maximum Reverse Force and 3 Start Modes.

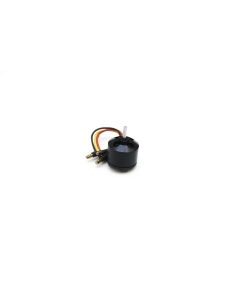

Volantex Ranger 1600 and Phoenix 1600 Replacement 2212-1400KV Brushless Motor.

motori brushless Turnigy SK3 sono ancora un altro passo in avanti nell'evoluzione del motore.

Ancora una volta abbiamo incaricato i nostri ingegneri per sviluppare un motore che non solo rivale, ma superare la qualità dei motori principali oggi sul mercato con le migliori qualità di magneti, cuscinetti e materiali disponibili.

Il risultato è una serie eccezionale di motori che siano efficienti, forte e abbastanza robusto per il modellista più esigenti.

Tutti i cuscinetti schermati doppie SK3 qualità uso serie, magneti al neodimio sinterizzato (il tipo più forte di magnete permanente disponibile in commercio) e una stringa ferita statore per garantire un accurato e costante avvolgimento ogni volta.

I motori Turnigy SK3 sono adatti per modellisti che sono alla ricerca di un motore brushless superiore qualità senza compromessi.

Caratteristiche:
• I cuscinetti a doppia schermatura
• magneti al neodimio sinterizzato
• String ferita statore
• Elevata qualità di finitura
• Funzionamento super-liscio

Specifiche:
Voltaggio: 11.1 ~ 16.8V (3 ~ 4S LiPoly)
RPM / V: 1250kv
Potenza massima: 770 W
Corrente max: 50A
Corrente di riposo: 0.016A
Resistenza: 24mh
Albero: 5mm
Spaziatura fori dei bulloni: 25 x 25mm
Filo Bolt: M2.5
Spina: 3,5 millimetri proiettile
ESC consigliato: 55A
Le dimensioni del motore: 37 x 36
Peso: 167g

Incluso:
Il motore
Mount & viti
adattatore prop

sensore di ricambio motore elettrico Trackstar V2 incorporando cuscinetto posteriore per ~ motori 8.5T 3.5T.
