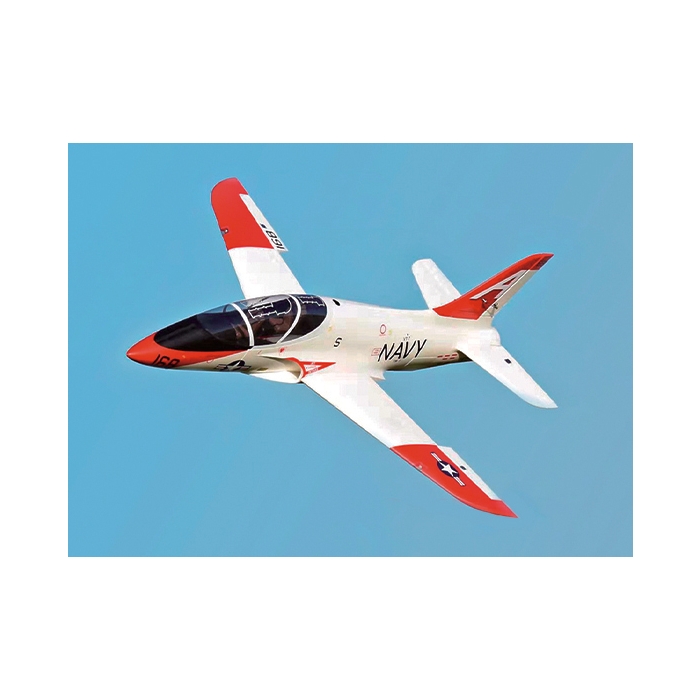

Super Viper Navy (12S) 105mm EDF Jet (KIT) HSDJETS

The all new Super Viper 105mm Version 4 has gone throgh a complete aero design enhancement! This aircraft is much more improved with better flight and aerobatic perfoance. With 16mm full aluminum main wing tube, it limit the amount of wing flex. Control surface have been improved with stainless steel pushrod and connectors, no more clevis! Steel offer higher precision from servo to surface.

SPECIFICATIONS:

Wingspan: 1500mm
Length: 1663,,
EDF/Motor:  105mm 4258/700KV brushless
Number of EDF Blade: 11
Wing area: 34.28 dm2
Main material: EPO
Recommended Power Battery: 6S (22.2V) 5000-6000 mAh X2
Ailerons: YES
Flaps: YES
Elevator: YES
Rudder: YES
Packaging / Size: 133x46x40cm
CG (Center of Gravity): 6.69in from the leading edge of the Main Wing

PACKAGE INCLUDES:

Fuselage×1
Left Wing×1
Right Wing×1
Left Horizontal Stabilizer×1
Right Horizontal Stabilizer×1
Vertical Stabilizer×1
Nose×1
Cockpit canopy×1
Main wing aluminum tube L=598mm external diameter 16mm×1
Horizontal Stabilizer tube L=500mm external diameter 6mm×1
Sticker×1
Accessories Bag 1 ×1
Screw (PWM4×35mm)×4 (Nose)
Screw (PM3×14mm)×2 (Wing)
Screw (PM3×10mm)×2 (Wing)
Screw (PA2×12mm)×4
Screw (PA3×8mm)×8 (Horizontal Stabilizer/Vertical Stabilizer)
Manual×1

REQUIRED:

7 channel radio system(radio & receiver)
6S,22.2V,5000～6000 mAh LiPo x2
2S,7.4V,1800～2000 mAh LiPo
LiPo battery charger
S-EDF 105mm 4258/700KV brushless
ESC:160A/12S
UBEC:6A (2P Du-Pont and JR connector)
Integrated Mix-Control system (required & not included)
Servo:
25g×3 Metal gear with 190mm lead (Left & right ailerons & rudder forward)
25g×2 Metal gear with 480mm lead (Flap forward)
25g×2 Metal gear with 80mm lead (Elevator forward)
12g×1 Metal gear with 450mm lead (Nose wheel steering forward)
12g×1 Metal gear with 300mm lead (360°lock Hatch cover forward)
Landing gear: Metal electric retractable hydraulic landing gear×3
General landing gear control system
LED lights system
Electromagnetic brake system
