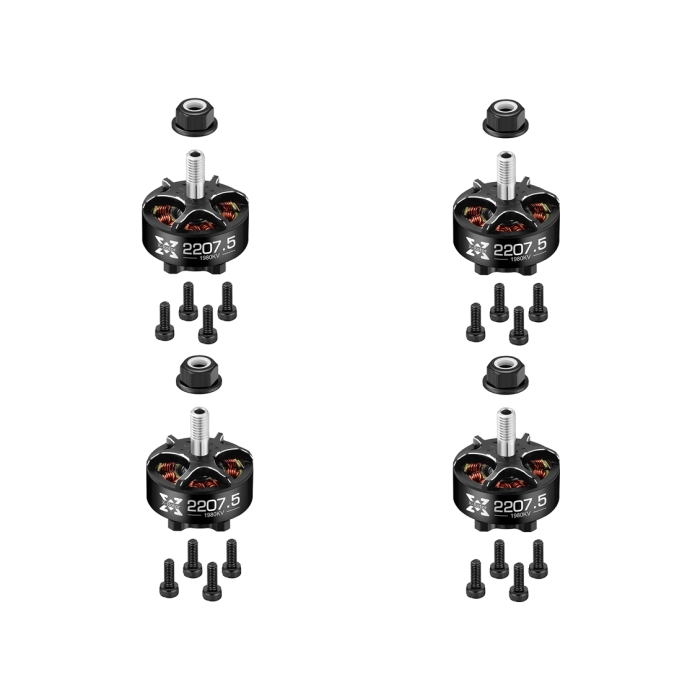

Hobbywing XRotor 2207.5-1980KV Brushless motor FOR 5 Inch/6 inch FPV Drone (4 Pack)

The Hobbywing XRotor series of brushless motors is now available at HobbyKing! Designed specifically for FPV drones, this series offers various models (including 2807, 2812,3110, 3115etc.) and KV ratings to meet the demanding requirements of different-sized aircraft for thrust and efficiency.

XRotor motors incorporate Hobbywing's advanced technology. The 12N14P slot-pole combination optimizes torque and smoothness, while the 220°C high-temperature resistant H-class enameled wire ensures reliability under high stress. The low internal resistance design helps improve efficiency and reduce power loss. Featuring a reinforced D5+M5 shaft and precision dynamic balancing, the motors guarantee mechanical stability at high RPMs. They come pre-installed with high-quality silicone wires and are recommended to be paired with the equally exceptional Hobbywing XRotor FPV G2 65A 4in1 ESC for integrated high performance.
Shop now at HobbyKing and power your FPV projects with trusted, genuine performance!

Feature:
• Dual KV Options: 1780KV for smooth flight control; 1980KV for ultra-responsive cornering.
• Electromagnetic optimization delivers enhanced torque at lower RPM for superior performance.
• Single-strand winding ensures stable throttle response and improved thermal dissipation.
• Innovative anti-slip tooth design prevents propeller slippage and boosts flight safety.
• Premium build materials deliver high torque density and reliable heat resistance.

Specs:
Brand: Hobbywing
Model: XRotor 2207.5 1980KV
KV Rating: 1980KV
LIPO Cells: 6S
No-Load Current: 3.2A/24V
Maximum Continuous Current: 49A/3s
Maximum Continuous Rating: 1166W/3s
Maximum Thrust: 1868g(HQ-5037)
Motor Weight: 38g
Motor Size: Φ28*H19.9mm
Slot/Pole: 12N14P
Wire Size: 20AWG
Wire Length: 150mm
Enamelled Wire Insulation Class: 220°C High temperature Resistant, H Class insulation
Internal Resistance: 65mΩ
Shaft Diameter: Φ5mm+M5
Shaft Length: 12mm
Screw Diameter / Thread: Φ16mm-4×M3
Recommended ESC: Xrotor FPV G2 65A 4in1 ESC
Propeller: 6S LiPo:HQ-5037,HQ J37

Included:
4x Hobbywing Xrotor 2207.5-1980KV Brushless Motor
