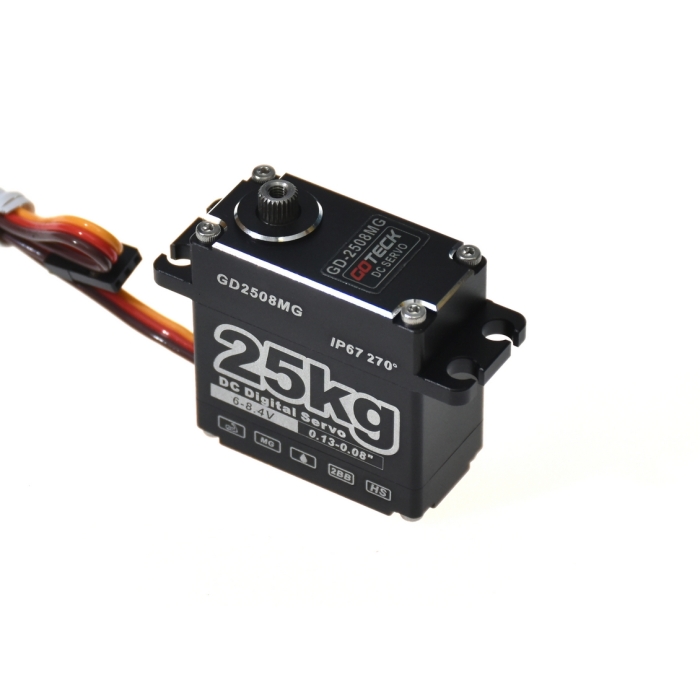

GOTeck GD2508MG Metal Geared 270° High Torque HV Digital Servo 25kg/0.08sec/78g

The GOTeck range of digital high torque standard size servos are up there amongst some of the best for quality and reliability at a price that offers excellent value for money.

The GS2508MG is a fast (0.08sec), high torque (25kg), metal-geared standard-size servo with an amazing rotation of 270°. This makes it very suitable for a variety of applications including robotics, or as a sail winch for a model yacht. The servo is supplied with a mounting kit and a selection of plastic servo horns, plus one metal servo horn. The entire servo case is CNC machined from solid 6061 aluminum, which is extremely strong and acts as a very good heatsink for the motor and amplifier.

Specs:
Model No: GD2508MG
Torque@6V: 18kg
Torque@8.4V: 25kg
Speed@6V: 0.13sec/60°
Speed@8.4V: 0.08sec/60°
Rotation: 270°
Gear Train: Metal
Bearings: Twin BB
Motor: Iron core
Amplifier: Digital
Dimensions: 40x20x40mm
Weight: 78g
