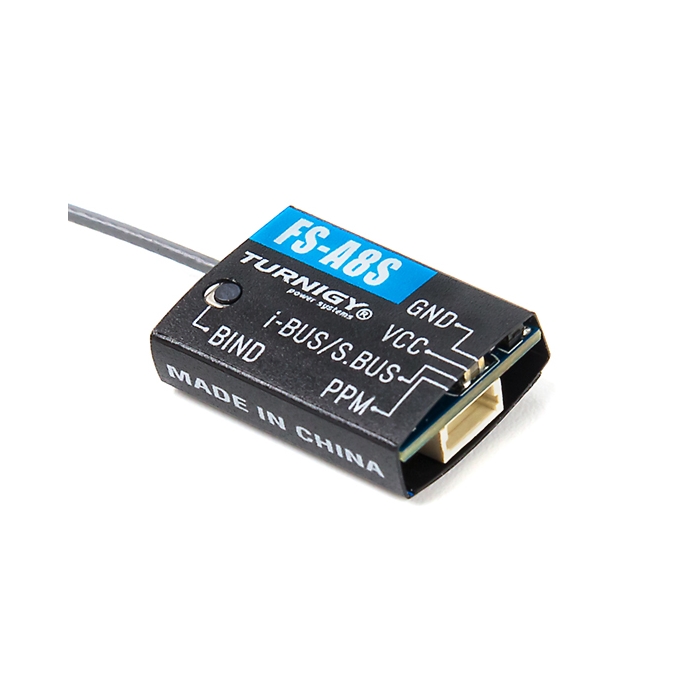

FS-A8S 2.4Ghz 8CH Mini Receiver with PPM i-BUS SBUS Output

In the world of racing drones the requirements are for small and light weight components. The FS-A8S receiver fits these requirements superbly, being only 20x14x5.3mm and 1.2g.

The FS-A8S is built for use in multi-rotor drones and is a 1-way receiver (no telemetry). It uses the extremely stable AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, supports standard PPM output and has i-BUS support for up to 18 channels.

 This is an excellent addition to your Turnigy TGY-i6s, Turnigy Evolution or Turnigy AFHDS 9x transmitters.

Features:
• Reliable, interference free 2.4GHz AFHDS 2A signal operation
• Ultra light, compact design

Specs:
Channels: 8 (PPM), 18 (i-BUS)
Model type: Multi-rotor
Frequency range: 2.408-2.475GHz
Band width: 500KHz
Band number: 135
RX Sensitivity: -92 dBm
2.4GHz system: AFHDS 2A
Modulation type: GFSK
Low Voltage alarm: None
DSC port: PPM/i-BUS/S.BUS
Antenna length: 26mm (Not including brass contacts)
Input power: 4.0-8.4V
Online update: None
No ground interference (Transmitting and receiving 1 m from the ground): >300m
Working current: 40mA
Channel delay: <15mS
Size: 20x14x5.3mm
Weight: 1.2g
Certificate: CE0678, FCCID: N45ZA8S00

Includes:
1 x FS-A8S 2.4G 8CH Mini Receiver
