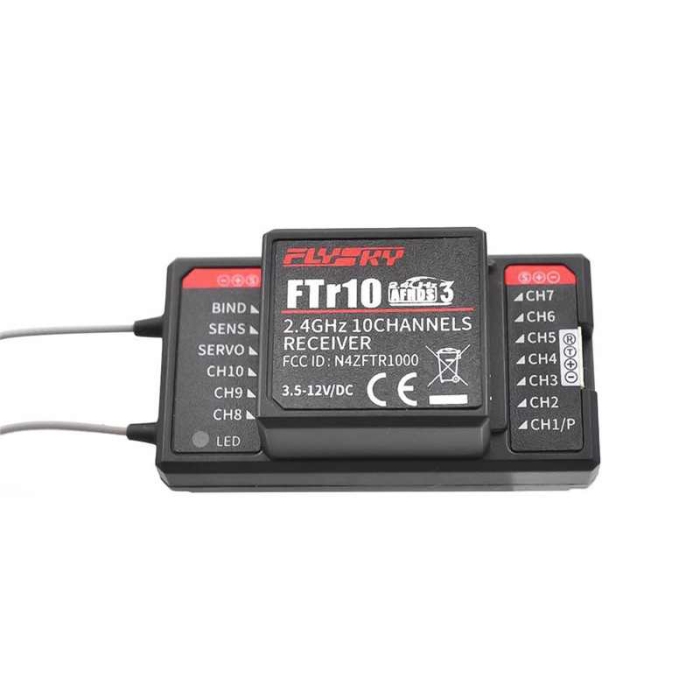

FLYSKY FTr10 2.4GHz 10ch AFHDS 3 Receiver w/S-Bus/i-Bus/PPM/PWM Support & PL18 Compatibility

The FTr10 adopts FLYSKY's third-generation automatic frequency hopping digital system, AFHDS 3. It uses a double-antenna, bidirectional transmission system to save space and supports standard PPM, S-Bus, and i-Bus signals.

The FTr10 is a small, lightweight 2.4GHz receiver that will accept a wide input voltage of between 3.5~18V, has an incredible range in interference-free open areas of up to 10km, and its unique design includes i-BUS, S-BUS, PPM, PWM, and UART data ports. It has the ability to update firmware online and is compatible with the FLYSKY Paladin PL18 radio system. With all these features it is the perfect choice for drone flying, drone racing, FPV, and other long-range applications.

Features:
• Small and Lightweight
• Accepts a wide input voltage of 3.5~18V
• Bidirectional dual antenna
• AFHDS 3 protocol
• Has the ability to be updated online
• Its unique design includes i-BUS, S-BUS, PPM, PWM, and UART data ports
• Up to 10km range in interference-free open areas

Specs:
Type: FLYSKY AFHDS 3 10ch FTr10 Receiver
Frequency: 2.4GHz
Protocol: AFHDS 3
Data Port: i-Bus, S-Bus, PPM, PWM, UART
RSSI: Yes
Antenna Type: Dual antenna
Power Input: 3.5~18V
Range: Up to 10km in open areas with no interference
Updates: Available online
Operating Temperature: -15°C~+60°C
Humidity: 20%~95%
Dimensions: 52x28x22mm
Weight: 41g
Certification: CE, RCM, FCC ID: N4ZFTR1000
