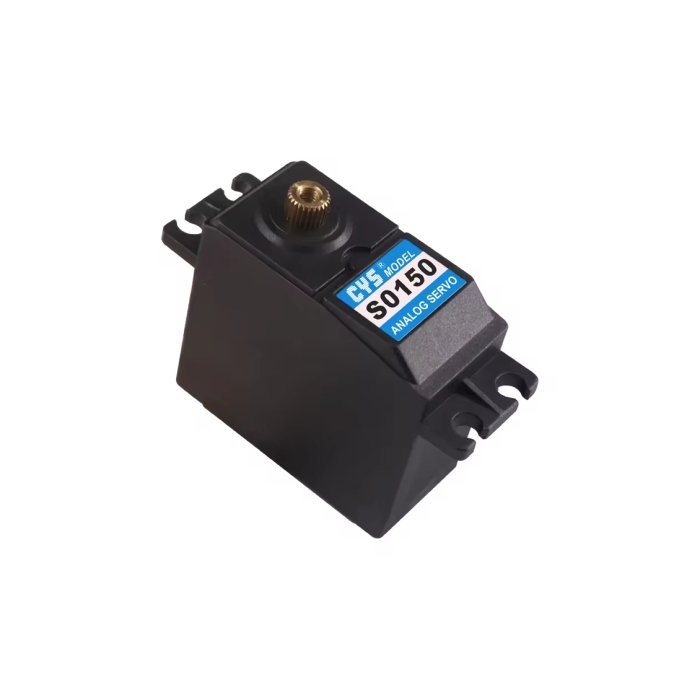

CYS-S0150 Standard servo 14Kg / 0.17sec / 58g
Special Price
7,38 €
Regular Price
9,22 €
In stock
Only 17 left
SKU
9396750005
Description:
Item NO.: CYS-S0150 15Kg standard size servo
Description : 15Kg servo motor for rc car-rc boat-rc plane

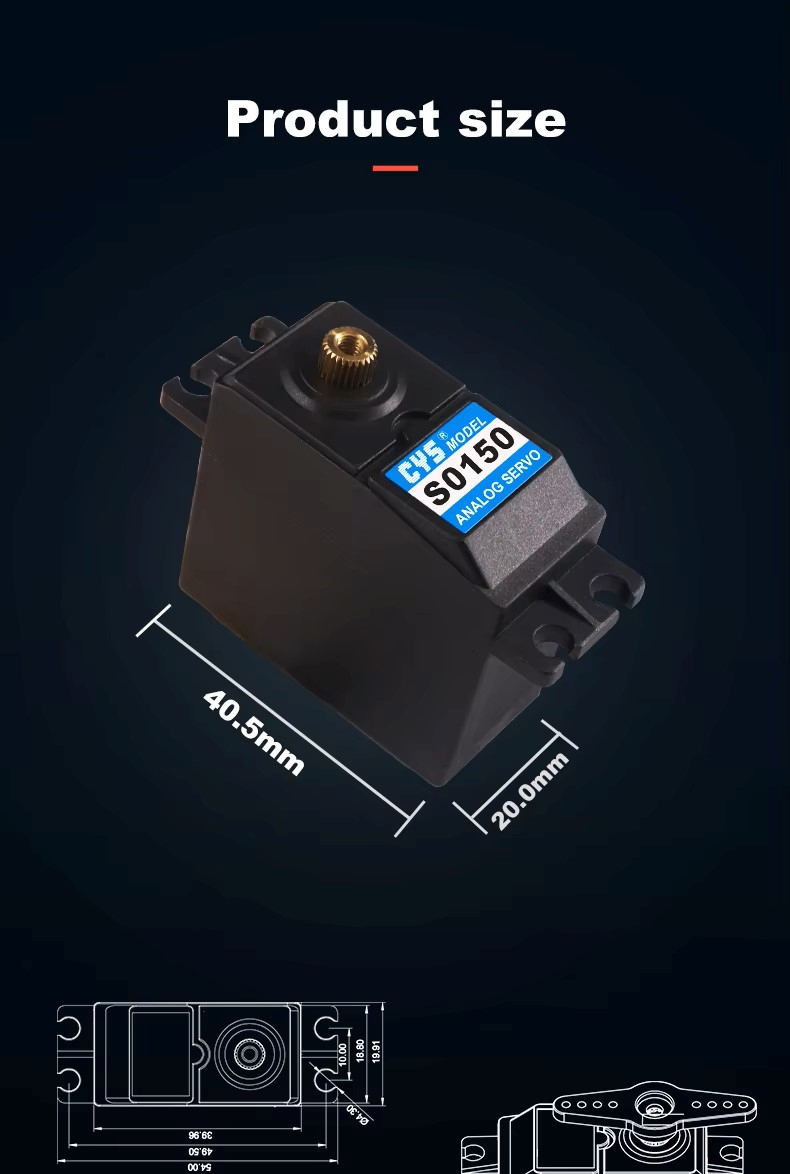

Size : 40.5*20*38MM
Torque : 14Kg.cm ~ 15Kg.cm
Speed : 0.17sec ~ 0.15sec/60 degree
Voltage : 6.0Volts ~7.4Volts
Weight : 58± 1g
Description:
Item NO.: CYS-S0150 15Kg standard size servo
Description : 15Kg servo motor for rc car-rc boat-rc plane
Size : 40.5*20*38MM
Torque : 14Kg.cm ~ 15Kg.cm
Speed : 0.17sec ~ 0.15sec/60 degree
Voltage : 6.0Volts ~7.4Volts
Weight : 58± 1g
Application&Features:
| Type | Analog |
|---|---|
| Weight | 58g±1g |
| Size | 40.8*20.1*38mm |
| Control System | (+)Pulse Width Control 1500usec Neutral |
| Operating Voltage | 6.0~7.4Volts |
| Operating Temperature Range | (-)10 to +50 degree C |
| Operating Speed (6.0V) | 0.16sec/60° at no load |
| Operating Speed (7.4V) | 0.14sec/60° at no load |
| Stall Torque (6.0V) | 14kg.cm |
| Stall Torque (7.4V) | 15kg.cm |

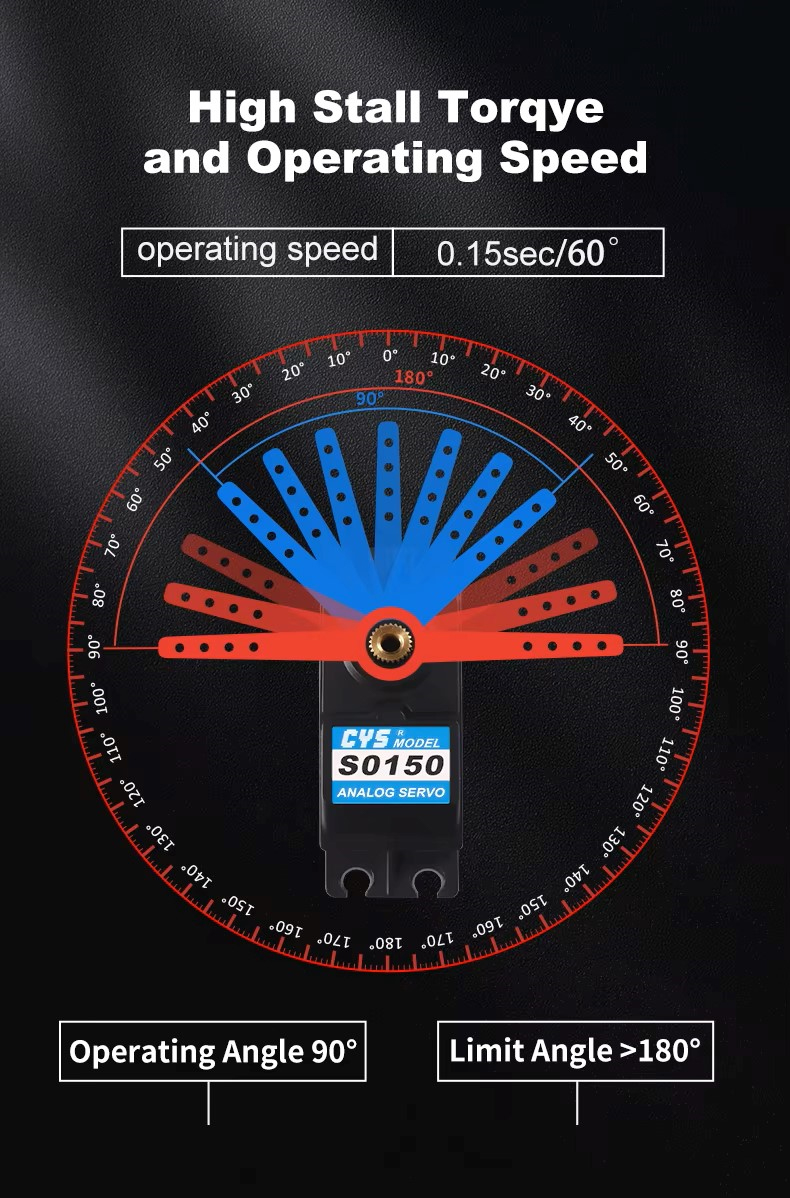

| Operating Angle | 45deg.one side pulse traveling 500 usec |
| Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (6.0V) | 20mA/idle and 200mA no load operating |
| Current Drain (7.4V) | 20mA/idle and 300mA no load operating |
| Stall Current | 2.7A/3.2A |
| Dead Band Width | 4usec |
| Motor Type | Iron core |
| Bearing Type | ball bearing |
| Horn gear spline | 25T |
| Gear Type | Metal |
| Connector Wire Length | 300mm±5mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal |
| Servo Velocità ( Sec / 60deg ) | 0,16 € |
|---|---|
| Item Returns | This item can be returned |
