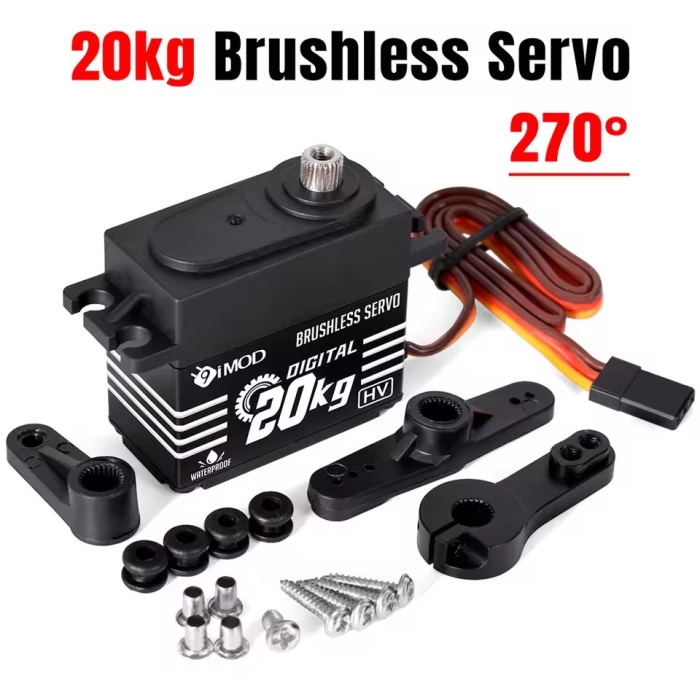

9iMOD BLS-HV20KG-270 HV Waterproof 270° MG Digital Brushless Car/Truck Servo 20kg/0.06sec/69.2g

The 9iMOD BLS-HV20KG-270 digital high torque, high voltage brushless metal geared servo is a quality and reliable car/truck servo at an affordable price. The aluminum center case offers strength and heat dissipation, and the servo is also completely waterproof. This dual ball-raced servo is powerful and fast, on a 7.4V power supply it will give you a torque of 20kg, and a speed of 0.06sec/60°. Unlike most other servos with a travel of around 160°, this servo can travel up to a whopping 270° which makes it even more versatile for loads of uses other than RC cars including robotics, etc.

The servo is supplied with mounting screws, ferrules, rubber grommets, servo horn machine screw, and 3 heavy-duty servo arms. The servo lead is fitted with a universal JR "S" type servo connector which is physically and electrically compatible with all major receiver brands sold worldwide. This precision servo is a must for RC cars, buggies, crawlers, boats, and any application where you want speed and power.

Features:
• A high torque, high speed, digital brushless HV servo
• Has an amazing 270° of travel
• Strong metal gearing
• Twin ball-raced output shaft
• Aluminum center case for good heat dissipation
• Completely waterproof

Specs:
Type: 9iMOD BLS-HV20KG-270 HV Waterproof 270° MG Digital Brushless Car/Truck Servo
Input Voltage: 6~8.4V
Servo Travel: 270°
Output Torque @ 6.0V: 15kg/cm
Output Torque @ 7.4V: 20kg/cm
Output Torque @ 8.4V: 25kg/cm
Transit Speed @ 6.0V: 0.08sec/60°
Transit Speed @ 7.4V: 0.06sec/60°
Transit Speed @ 8.4V: 0.055sec/60°
Amplifier: Digital
Gear Train: Metal
Output Spline: 25T
Bearings: Twin bearings on output shaft
Motor: Brushless
Servo Lead Length: 300mm
Servo Connector: Universal JR "S" type
Dead Band Width: 2 usec
Dimensions: 40x20x37.3mm
Weight: 69.2g

Included:
1 x 9iMOD BLS-HV20KG-270 HV Waterproof 270° MG Digital Brushless Car/Truck Servo 20kg/0.06sec/69.2g
1 x Double-arm nylon servo horn
1 x Single-arm nylon servo horn
1 x Single-arm nylon servo horn w/clamp
1 x Servo horn machine screw
4 x Servo mounting screws
4 x Servo mounting grommets
4 x Servo mounting ferrules
