ZTW Skyhawk 155A ESC 3-8S 32-bit SBEC FOR RC Helicopter

The ZTW Skyhawk 155A ESC is a top-tier electronic speed controller designed for high-demand RC helicopter applications, now available at HobbyKing. Engineered for precision and reliability, this ESC delivers smooth, responsive throttle control with a robust 155A continuous current rating (200A burst), making it ideal for advanced pilots. Supporting 3-8S LiPo batteries (11.1V-33.6V) and featuring a built-in SBEC for stable auxiliary power, the ZTW Skyhawk ensures efficient energy delivery and enhanced flight stability. Its advanced firmware and durable, high-temperature-resistant construction provide seamless helicopter performance in demanding conditions.

Upgrade your setup with ZTW’s cutting-edge technology—shop now at HobbyKing and experience superior control and power for your RC helicopter!

Feature:
• Adopting high performance 32-bit M4 microprocessor with a running frequency of 170MHz, supported much stronger computing ability and faster running speed.
• Adopting new generation craft on the MOSFET, low heat generation, large instantly withstand current, and high reliability.
• Self-check function: after the ESC powered on, it will automatically check if have the power short circuit ,motor lose phase, throttle is not at zero position problem, and voltage range.
• The special ESC case design and the unique fan guard structure greatly enhance the ESC heat dissipation performance.
• There are two flight modes: fixed-wing mode and helicopter mode.
• Equipped with the helicopter speed-control function, the speed sensitivity is adjustable and easy to operate.
• Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.

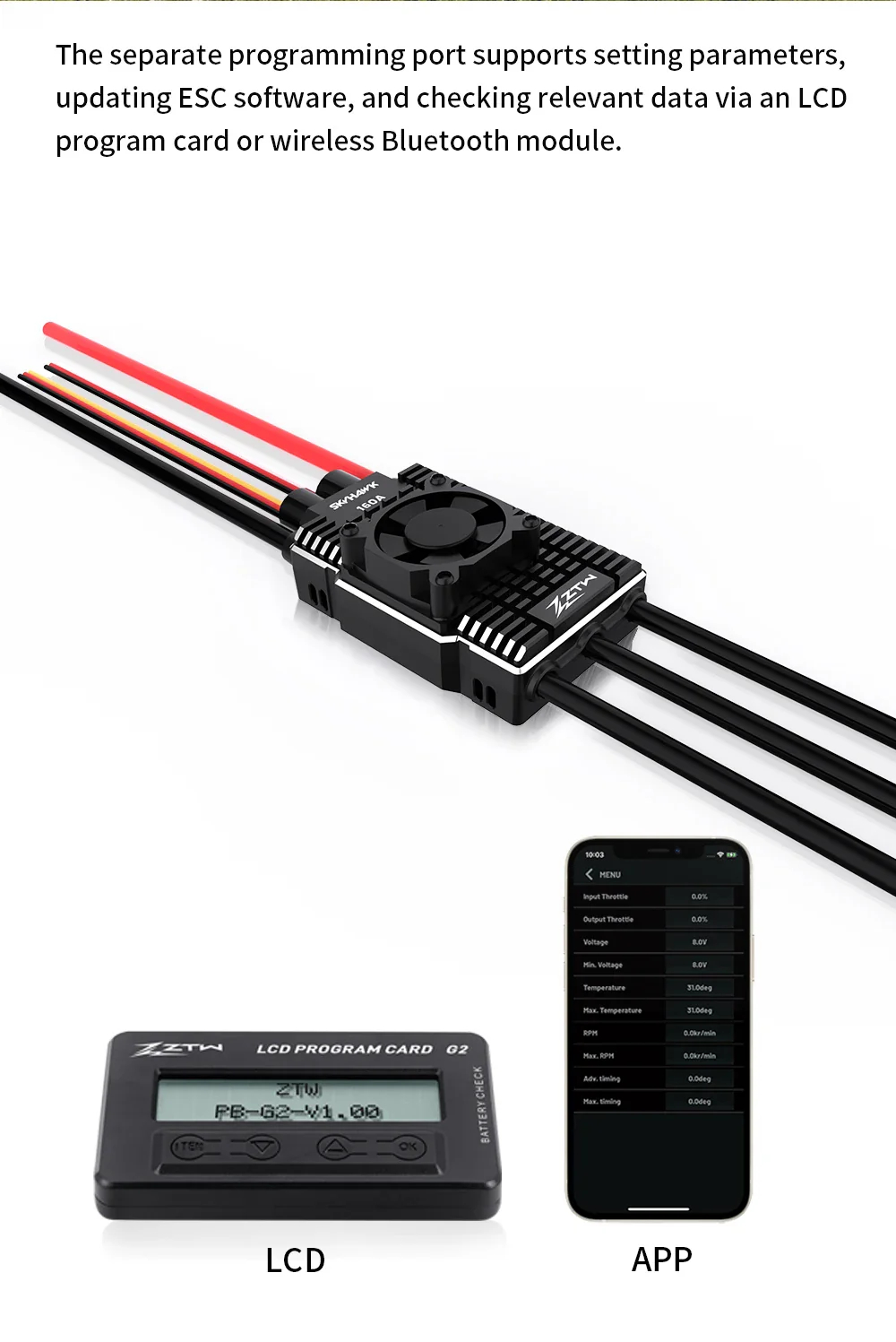

• The ESC has a separate programming interface to connect with LCD programming card or Bluetooth module for programming.
• Supporting data returning function: current, voltage, temperature, RPM, throttle and ESC status code.
• Bluetooth module supported, change the parameter settings, software upgrading, data recording and the operation can be completed via the mobile phone (Apple and Android) APP.
• Multiple protections: abnormal power-on voltage protection, start up protection, temperature protection,throttle signal loss protection, over load protection,low voltage protection, over current protection.

Specs:
Continuous current: 155A
Burst Current: 170A
Cell count: 3-8S Lipo
Weight: 171g
SBEC output: 6.0V/7.4V/8.4V Adjustable 10A
CPU frequency: up to 170Mhz
Dimensions: 87*40*32mm(L*W*H)
Battery Connector: EC5
Motor Connectors: 4.0mm Plug
Programmable via transmitter, G2 program card, Android/iOS app w/ optional bluetooth module

Included:
1 x Skyhawk 155A ESC

Please note: A copy of the assembly manual and the Quick Set Up Guide are available under the "Manuals/Files" tab above.
