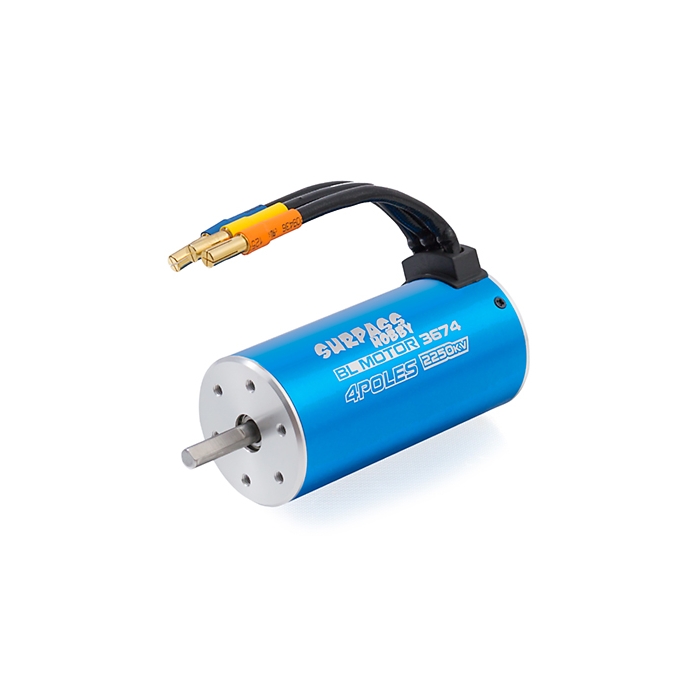

Brushless Inrunner Motor 3674 2250KV (1:10th - 540)
Looking for an inexpsensive motor replacement for your basher? These are just what the doctor ordered! These sensorless brushless motors are fitted with precision bearings, correctly rated magnets, balanced rotors, and premium grade steel shafts.
Looking for an inexpsensive motor replacement for your basher? These are just what the doctor ordered! These sensorless brushless motors are fitted with precision bearings, correctly rated magnets, balanced rotors, and premium grade steel shafts.
Features:
• Hand wound for maximum copper fill
• Precision balanced rotor, boost's the efficiency and performance of the motor
• Nickel-plated neodymium rotor for maximum motor acceleration, braking power and performance in high-temperature conditions
Specs
Kv: 2250
Max Current: 80A
Max Power: 1800
Idle current: 4A
Resistance: 0.0076
Shaft: 5mm
Weight: 305g
Suggested ESC: 120A
Input Voltage: 7.4-14.8V (2-4 cell LiPoly)
Bolt Hole Spacing: 25
Bolt Thread: 3
Connector Type: 4mm Bullet-connector
| Kv ( rpm / v ) | 2 077,43 € |
|---|---|
| Correntes Max (A) | 73,86 € |
| Resistência (MH ) | 0,01 € |
| Max Tensão ( V) | 13,66 € |
| Potência (W) | 1 661,94 € |
| Shaft A ( mm) | 4,62 € |
| Comprimento B (mm) | 84,02 € |
| Diâmetro C ( mm ) | 33,24 € |
| Pode Comprimento D (mm) | 68,32 € |
| Comprimento Total E ( mm) | 84,02 € |
| Item Returns | This item can be returned |
