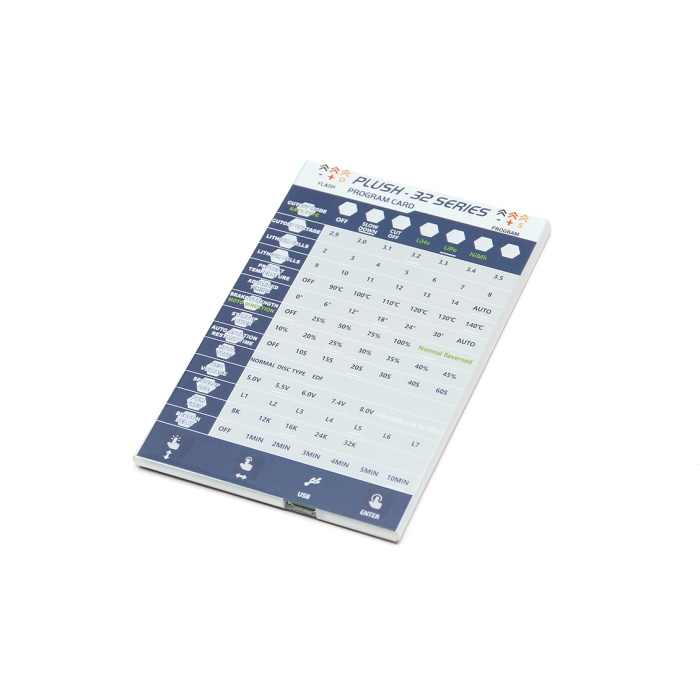

Turnigy Plush-32 Brushless Speed Controller Programming Card (Rev1.1.0)

The Plush-32 Brushless ESC programming card is designed to make life easy. No more listening to the beeps, and guessing when to move your throttle to make changes to your ESC settings. This programming card changes settings with the press of a button, and easy-to-read LED’s let you know exactly how your ESC has been programmed. This programming card is a must for your Plush-32 series brushless ESC.

Now with the updated Rev1.1.0 firmware, this program card offers a few more programming options over previous models. These include motor type, spool-up acceleration, PWM frequency, beacon delay, and an adjustable BEC (this is only available for the 150A ESC). Most of these revisions are self-explanatory but the "Beacon Delay" does require an explanation. The "Beacon Delay" is quite a unique function that will cause the ESC to start "beeping" after a predetermined delay of not using the throttle stick, this delay can be set from between 1 and 10mins using this program card. The loud beeping noise is perfect for finding your model if it gets lost in high grass, standing crops, or in the bush, etc. Please note that you can use this programming card to program earlier versions of the Plush 32 series but only ESCs with the Rev1.1.0 firmware will show the revised functions.

The Plush-32 series (Rev1.1.0) program card allows you to make the following selections:
Cut-Off Mode: Off/Slow down/Cut-off
Battery Type: LiHv/LiPo/NiMh
Cutoff Voltage: 2.9~3.5V
Number of Cells: 2/3/4/5/6/7/8/9/10/11/12/13/14/auto (depending on amperage of ESC)
Protection Temperature: Off/90/100/110/120/130/140°C (60A and above only)
Advanced Timing: 0/6/12/18/24/30° and auto
Brake: Off/On, can be set from transmitter
Brake Strength: Off/25/50/75/100%
Start-Up Power: 10/20/25/30/35/40/45%
Auto Rotation Restart Time: Off/10/20/30/40/60S
Motor Type: Normal/Disc Type/EDF
BEC Voltage: 5/5.5/6/7.4/8V (150A version only)
Spool-Up/Acceleration: L1/L2/L3/L4/L5/L6/L7
PWM Output Frequency Range: 8/12/16/24/32KHz
Beacon Delay: Off/1/2/3/4/5/10mins

Note: A copy of the specifications sheet is available under the "Files" tab.
