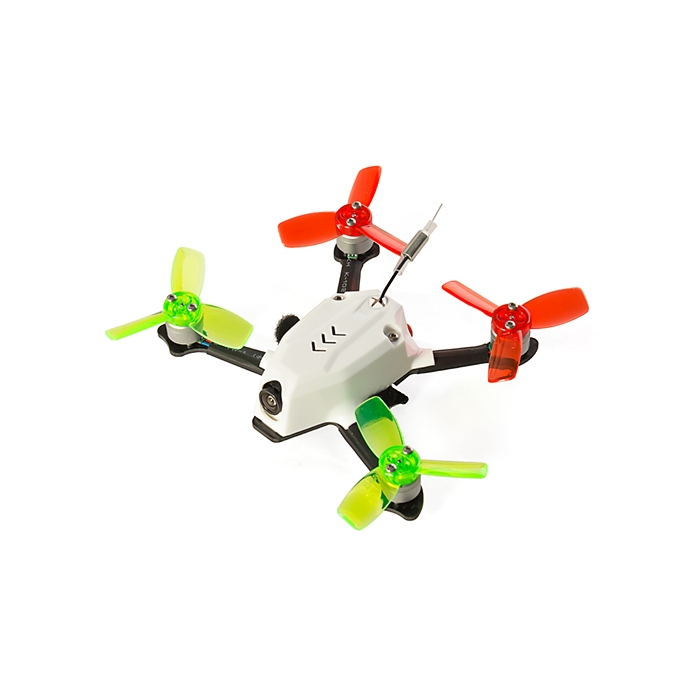

ZING 110 Cross Drone PNF

Take off with the Zing 110 Cross. Fitted with a built-in FPV camera, the mini drone is a lightweight plug-and-fly model. Using dedicated 3-in-1 drivers, the 50 MHz operating frequency ensures a smoother start and limits the speed to a maximum of 500kv RPM. The Zing 110 features exposed pads for battery and motor wires so that additions and disassembly can be more conveniently welded.


The two layer tower structure between the 4-in-1 ESC and FC uses quick pin connection to make installation faster and more convenient. The Flight Controller has an integrated OSD for image transmitter, camera, LED and other peripheral devices. The F3 flight controller supports PPM and SBUS remote controls and receiving modes.


BL Heli-S firmware was designed for superior performance in multi-rotors and uses hardware generated motor pwm for smooth throttle response and silent operation. The code will run flawlessly even in high pressure situations due to tuneable parameters. Although default settings will work excellently in normal operating environment. The code supports regular 1-2ms pulse width input as well as Oneshot125, Oneshot42, and Multishot. The input signal is automatically detected by the ESC upon power up. The BL Heli-S firmware also supports Dshot digital signal ensuring stronger anti-interference ability and no need for throttle calibration.


Features:
• Lightweight plug-and-fly model
• Flight Controller with integrated OSD
• 50 MHz maximum operating frequency
• ESXC maximum speed is limited to 500 RPM
• Two layer tower structure with quick pin connection
• BL Heli-S firmware for smooth throttle response and silent operation
• Tuneable parameters and default settings
• Supports regular 1-2ms pulse width input as well as Oneshot125, Oneshot42, and Multishot
• Input signal automatically detected by the ESC upon power up
• Supports Dshot digital signal
• Anti-interference ability is stronger
• Don't need throttle calibration
• Exposed pads for battery and motor wires for fast welding


Specs:
Model: Raptor S-Tower 12A-OSD
Continuous Current: 12
Burst Current (10S): 12A
BEC: 5V/1A (F.C.)
Lipo Cells: 2-3S
Weight: 11.5g
Size: 30.5 x 33.4 x 19mm
Typical Applications: 80-130 Multi


Includes:
Raptor BLS 12A 4in 1 ESC
F3 Flight Controller
8 x Nylon Spacer M2*6+5
4 x Nylon Nut M2

Required:
Radio gear
2~3s Lipo Battery
FPV Goggles
