9iMOD DS35MG HV (7.4V) Waterproof 270° MG Metal-Cased Digital Car/Truck Servo 35kg/0.25sec/80g

The 9iMOD DS35MG digital high torque metal geared servo is a quality and reliable car/truck servo at an affordable price. The full aluminum case offers strength and heat dissipation, and the servo is also waterproof to IP67 standards. This dual ball-raced servo is very powerful and fast, it will give you an amazing torque of 35kg, and a speed of 0.25sec/60° when using a 7.4V power supply. Unlike most other servos with a travel of around 160°, this servo can travel up to an amazing 270° which makes it even more versatile for loads of uses other than cars including boats, robotics, etc.

The servo is supplied with mounting screws, ferrules, rubber grommets, servo horn machine screws, and 3 heavy-duty servo horns. The servo lead is fitted with a universal JR "S" type servo connector which is physically and electrically compatible with all major receiver brands sold worldwide. This precision servo is a must for RC cars, buggies, crawlers, boats, and any application where you want speed and power.

Features:
• A high torque, high speed, digital HV servo
• Has an amazing 270° of travel
• Strong metal stainless steel gearing
• Twin ball-raced output shaft
• Full aluminum case for strength and good heat dissipation
• Waterproof to IP67 standards

Specs:
Type: 9iMOD DS35MG HV (7.4V) Waterproof 270° MG Metal-Cased Digital Car/Truck Servo
Input Voltage: 4.8~7.4V
Servo Travel: 270°
Output Torque @ 5.0V: 24.9kg/cm
Output Torque @ 6.0V: 30kg/cm
Output Torque @ 7.4V: 35.1kg/cm
Transit Speed @ 5.0V: 0.37sec/60°
Transit Speed @ 6.0V: 0.3sec/60°
Transit Speed @ 7.4V: 0.25sec/60°
Idle Current: 270mA@5.0V/320mA@6.0V/360mA@7.4V
Working Current: 1.9A@5.0V/2.3A@6.0V/2.8A/7.4V
Amplifier: Digital
Gear Train: Metal
Output Spline: 25T
Bearings: Twin bearings on output shaft
Motor: Brushed
Servo Lead Length: 300mm (22AWG)
Servo Connector: Universal JR "S" type
Dead Band Width: 2 usec
Dimensions: 40x20x40.5mm
Weight: 80g

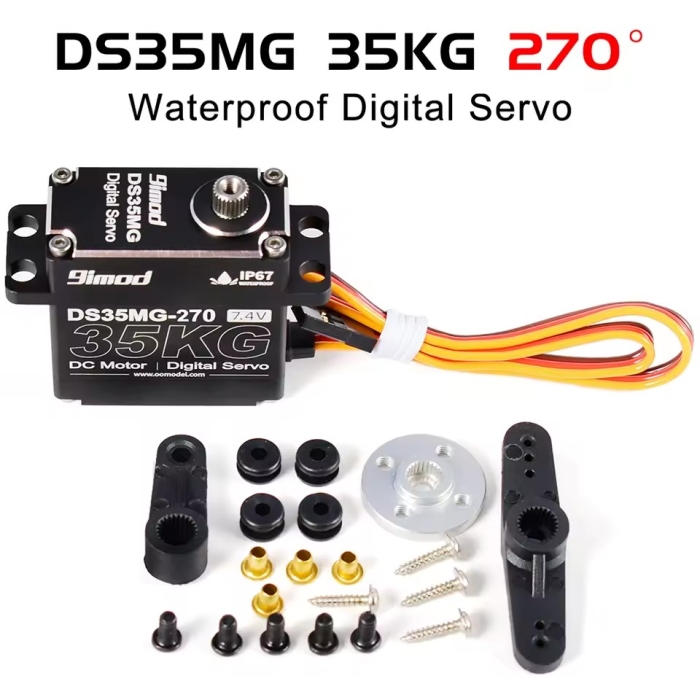

Included:
1 x 9iMOD DS35MG HV (7.4V) Waterproof 270° MG Metal-Cased Digital Car/Truck Servo 35kg/0.25sec/80g
1 x Double-arm nylon servo horn
1 x Single-arm nylon servo horn
1 x Round metal servo disc
5 x Servo machine screws
4 x Servo mounting screws
4 x Servo mounting grommets
4 x Servo mounting ferrules
