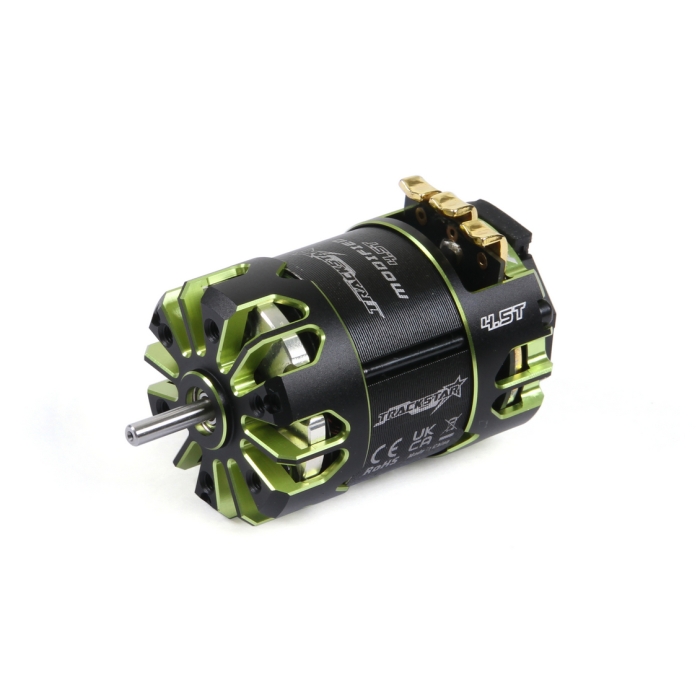

Turnigy TrackStar Modified 540 4.5T (1~2S) 1/10th Scale Sensored Brushless Motor

The Turnigy TrackStar modified 540 brushless motors offer outstanding performance at an incredible price! The unique stator design provides strong torque and a high RPM. Their CNC-machined 7075 aluminum case and titanium-magnesium alloy heat sink dissipate heat extremely well, allowing them to run at very low temperatures.

The stator is electro-plated to prevent tarnishing and rusting, and the American standard high-purity copper windings provide maximum conductivity.
They also feature adjustable timing, which can be adjusted in both directions for CW and CCW rotation. This allows for fine-tuning the performance of your vehicle while the dual sensor ensures smooth start-ups and acceleration. They are also fitted with original NSK R2ZZ Japanese bearings which ensure very smooth and vibration-free running at speeds up to 80,000rpm.

The TrackStar modified 540 1/10th brushless motors are suitable for 1/0th scale on-road, and off-road cars, trucks, and buggies. These motors also comply with ROAR, IFMAR, BRCA, and EFRA specifications.

Features:
• Sensor-based for excellent torque and smoothness even at slow speeds
• Adjustable timing for fine-tuning and CW or CCW rotation
• CNC machined 7075 aluminum motor case and titanium-magnesium alloy heat sink for excellent heat dissipation
• American standard high-purity copper windings for maximum conductivity
• Fitted with original NSK R2ZZ Japanese bearings for smooth and vibration-free running
• Removable/replaceable rotor
• Electro-plated stator to prevent tarnishing and rusting

Specs:
Type: Turnigy TrackStar Modified 540 Sensored Brushless Motor
Scale: 1/10th (modified class)
Poles: 2
Turns: 4.5
KV: 7800KV
Sensored: Yes (Standard 6-pin lead)
Sensor Lead: Included
Input Voltage: 3.7~7.4V (1~2S)
Max Current: 108A
Max Watts: 490
Resistance: 0.0029 ODM
Motor Diameter: 35.8mm
Motor Length: 52mm
Shaft Diameter: 3.175mm
Shaft Length: 13.9mm
Mounting Screw Threads: 6 x M3
Mounting Screw Centers: 25.2mm
Weight: 165g

Included:
1 x Turnigy TrackStar Modified 540 4.5T (1~2S) 1/10th Scale Sensored Brushless Motor
1 x Sensor Lead

Please note: A copy of the user manual is available under the "Manuals/Files" tab above.
