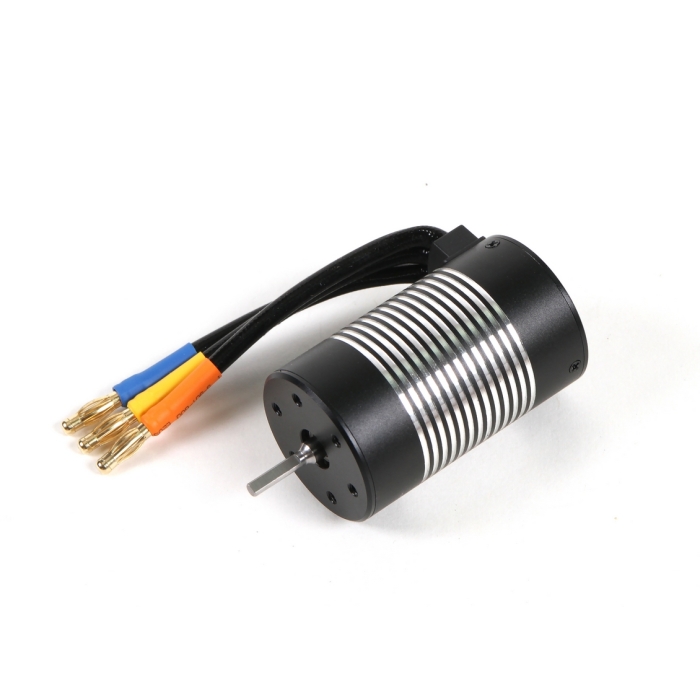

Rocket Surpass 3660-4500KV 3T 1/10th Scale RC Car/Truck Sensorless Brushless Motor

The Rocket Surpass range of brushless motors is precision-made using the latest manufacturing processes. The heatsink can is CNC machined from a solid billet of 6061 T6 aluminum, high-purity copper is used for the windings for improved efficiency, and oversized ABEC5 high-speed bearings are used for durability. The stator has super thin (0.35mm) laminations, and the rotor is then precision balanced for reliability and ultra-smooth running at maximum RPMs.

The Rocket Surpass 3660-4500KV motor has been specially built for 1/10th size RC cars and trucks and is water and dust-resistant for use in demanding conditions. This powerful 3T, 4-pole, 12-slot motor features a universal mounting system so that it will fit just about all 1/10th scale vehicles.

Features:
• The heatsink can is CNC machined from a solid billet of 6061 T6 aluminum
• High-purity copper is used for the windings for improved efficiency
• Each motor includes oversized ABEC5 high RPM bearings for durability
• The stator has super thin (0.35mm) laminations
• Rotor is precision balanced for reliability, and ultra-smooth running
• Water and dust resistance for use in demanding conditions
• Universal mounting system to suit most 1/10th scale vehicles

Specs:
Type: Rocket Surpass 3660-4500KV 3T 1/10th Scale RC Car/Truck Sensorless Brushless Motor
Max Voltage: 12V
RPM/V: 4500KV
Turns: 3
Poles: 4 (12-slot)
Max Loading: 100A
Max Power: 1200W
Max RPM: 50,000
Resistance: 0.0058
Motor Diameter: 36mm
Length of Can: 60mm
Shaft Diameter: 5mm
Length of Shaft: 17mm
Mounting Screws: M3
Mounting Screw Spacing: 25mm
Motor Connectors: 4mm gold-plated
Weight: 219g
