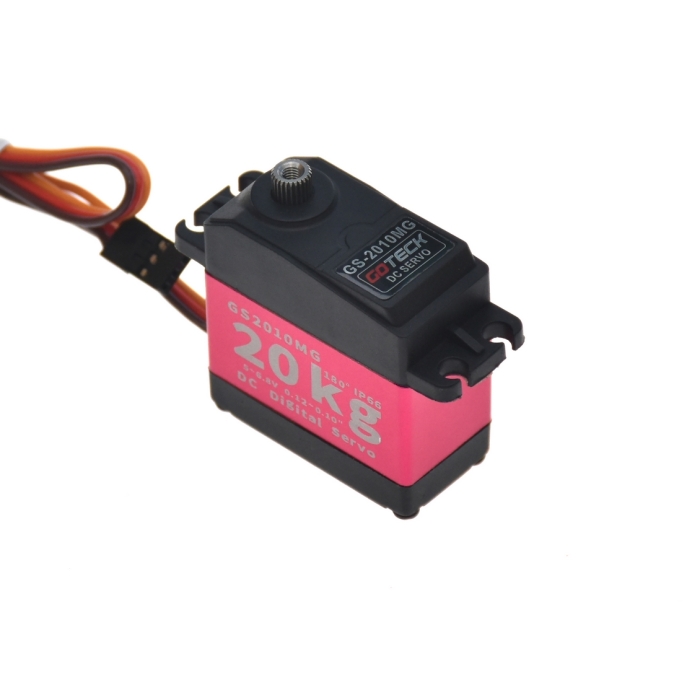

GOTeck GS2010MG Metal Geared 180° High Torque Digital Servo 23.5kg/0.10sec/60g
A powerful high torque (23.5kg), metal-geared standard size servo with CNC machined center case and a rotation of 180°, supplied with a mounting kit, and a selection of plastic servo horns, plus one metal servo horn.
Specs:
Model No: GS2010MG
Torque@5V: 21kg
Torque@6.8V: 23.5kg
Speed@5V: 0.12sec/60°
Speed@6.8V: 0.10sec/60°
Rotation: 180°
Gear Train: Metal
Bearings: Twin BB
Motor: Iron core
Amplifier: Digital
Dimensions: 40x20x40.5mm
Weight: 60g
The GOTeck range of digital high torque standard size servos are up there amongst some of the best for quality and reliability at a price that offers excellent value for money. The top and bottom cases are made from high-strength fiber-reinforced nylon and the center case is CNC machined from solid 6061 aluminum, this acts as a very good heatsink for the motor and amplifier.
The GS2010MG is a powerful high torque (23.5kg), metal-geared standard-size servo with a rotation of 180°, supplied with a mounting kit, and a selection of plastic servo horns, plus one metal servo horn.
Specs:
Model No: GS2010MG
Torque@5V: 21kg
Torque@6.8V: 23.5kg
Speed@5V: 0.12sec/60°
Speed@6.8V: 0.10sec/60°
Rotation: 180°
Gear Train: Metal
Bearings: Twin BB
Motor: Iron core
Amplifier: Digital
Dimensions: 40x20x40.5mm
Weight: 60g
| Servo Drehmoment ( kg) (min. 0,01 kg ) | 21,65 € |
|---|---|
| Servo Speed ( Sec / 60deg ) | 0,09 € |
| Servo A ( mm) | 37,30 € |
| Servo B (mm) | 36,84 € |
| Servo D ( mm) | 18,42 € |
| Item Returns | This item can be returned |
