Turnigy iA6C PPM / SBUS受信機

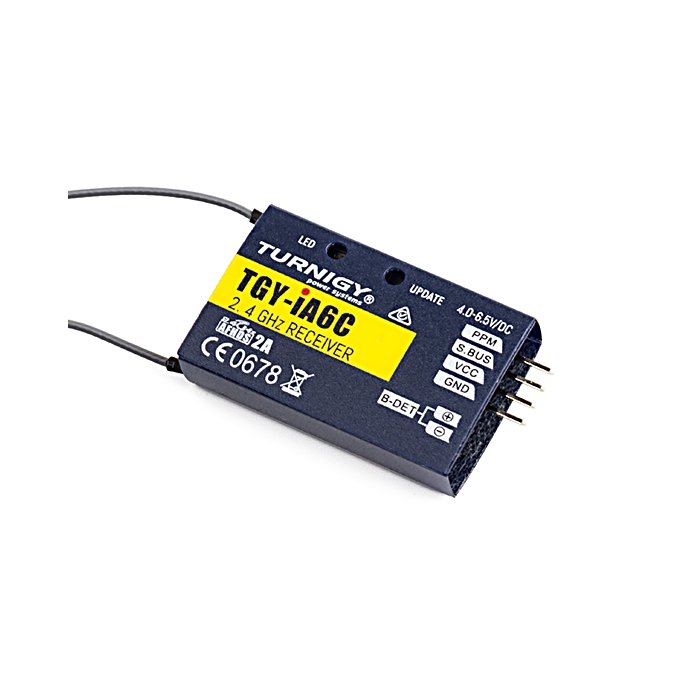

The Turnigy TGY-iA6C is a new style in receivers. It builds on the reliability of the TGY-iA6B receiver but it is built specifically for using with PPM, i.BUS and S.BUS configurations. This is an excellent addition to your Turnigy TGY-i6s, Turnigy Evolution or Turnigy AFDHS 9x transmitters.

Dual antennas give the iA6C for unparalleled reception. Built-in connections allow you to use our optional telemetry sensors.

An excellent receiver for multi-rotor drones as it cuts down on cabling and with built-in battery monitoring.

Features:
• Reliable, interference free 2.4GHz AFHDS 2A signal operation
• PPM, i.BUS, S.BUS
• Ultra-light weight design
• Dual antennas for most reliable interference free operation
• Connection ports for use with optional telemetry sensors
• Battery monitoring

Specs:
Channel: 8
Frequency: 2.4GHz ISM Frequency Range
Band width: 500KHz
Band quantity: 135
RF Power: <20dBM
System: AFHDS2A
Code type: GFSK
Output data: PPM, i.BUS, S.BUS
Antenna length: 26mm
Power: 4.0V~6.5V
Wireless Update: Yes
Channel data: Center position: 1500±30us; range: 1000~2000±30us
Channel delay: <15ms
Net Weight: 7.9g
Dimensions: 41x25x10mm
Range: >300 meters
Certification: CE0678, FCC ID: N4ZIA6C00, RCM
