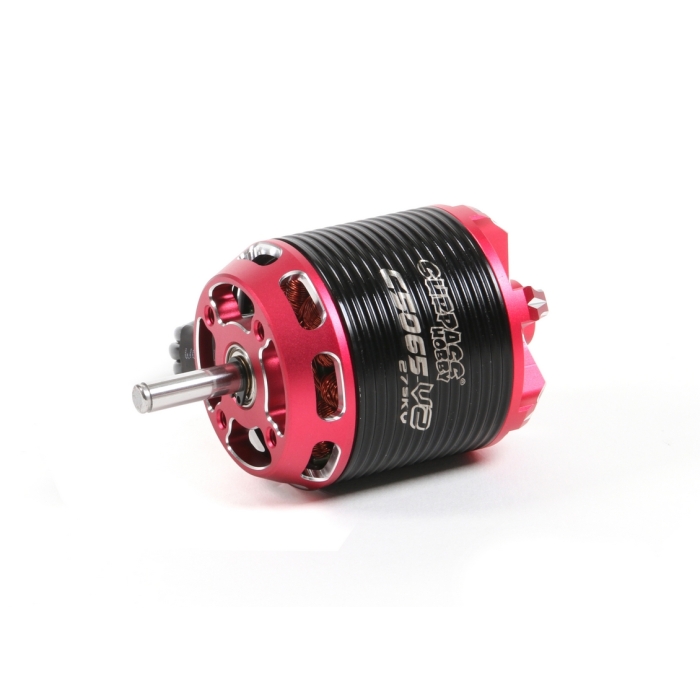

Rocket Surpass 5065-275KV Sensorless Brushless Outrunner Motor

The Rocket Surpass range of brushless motors is precision-made using the latest manufacturing processes. The heatsink can is CNC machined from a solid billet of 6061 T6 aluminum, high-purity copper is used for the windings for improved efficiency, and double-shielded oversized bearings are used for durability. The motor includes sintered neodymium magnets, the stator has super thin (0.2mm) laminations, and the rotor is precision balanced for reliability, and ultra-smooth running at maximum RPMs.

The Rocket Surpass 5065-275KV motor suits sport, scale, and 3D-type models. This robust motor suits LiPo batteries from 6 to 10S, on test with a 10S battery it produced an incredible 2300 watts of power at 65A, making it a great motor for the larger models. The motor is supplied with a machined prop adapter, complete with mounting bolts, allowing it to be mounted either way round.

Features:
• The heatsink can is CNC machined from a solid billet of 6061 T6 aluminum
• High-purity copper is used for the windings for improved efficiency
• Each motor includes double-shielded oversized bearings for durability
• The stator has super thin (0.2mm) laminations
• Includes sintered neodymium magnets
• Rotor is precision balanced for reliability, and ultra-smooth running

Specs:
Type: Rocket Surpass 5065-275KV Sensorless Brushless Motor
Voltage: 6~10S (22.2~37V)
RPM/V: 275KV
Max Loading: 65A
Max Power: 2300W
Resistance: 0.017 Ohms
Motor Diameter: 50mm
Length of Can: 65mm
Shaft Diameter: 6mm
Bolt Holes: M4
Mounting Hole Spacing: 25mm
Motor Connectors: 4mm bullet
Weight: 531g

Included:
Rocket Surpass 5065-236KV Sensorless Brushless Motor
Mount & screws
Prop adapter

Performance Data (6S):
20x8: 1047W, 50A, 4953g static thrust
20x10: 1234W, 59A, 5948g static thrust
22x8: 1380, 65A, 6129g static thrust

Performance Data (8S):
16x10: 1337W, 47A, 5849g static thrust
17x10: 1609W, 57A, 6764g static thrust
17x12: 1840W, 65A, 7859g static thrust

Performance Data (10S):
15x8: 1661W, 47A, 6131g static thrust
16x8: 2026W, 58A, 7184g static thrust
18x6: 2300W, 65A, 7448g static thrust
