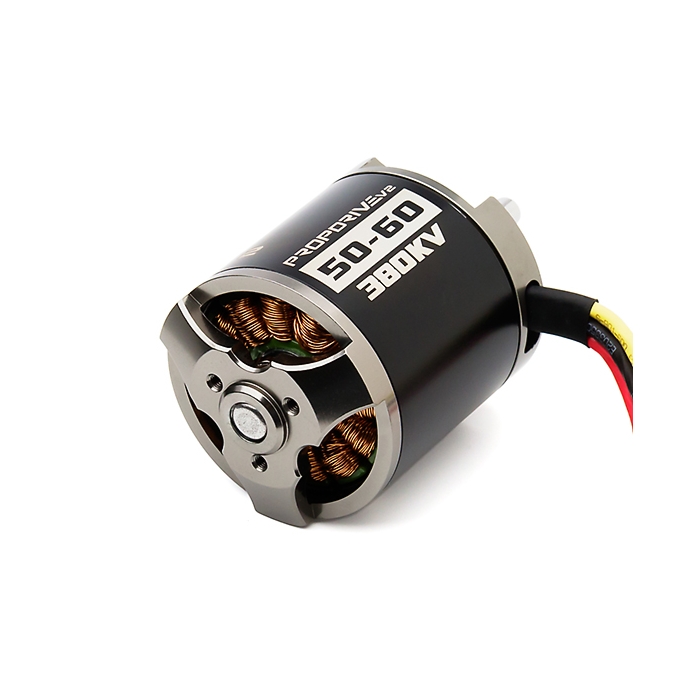

NTMプロップドライブ50〜60シリーズ380KV / 2665W

PROPDRIVE v2 motors are designed to perform right out of the box with tight windings, smooth bearings, correctly rated magnets, precision cut stator, and balanced rotors.

We design and build the PROPDRIVE v2 motors in-house, allowing us to control every aspect of production. We control the entire production line from material sourcing to machining, balancing, and final assembly. PROPDRIVE motors can be trusted to provide years of reliable service at a price every modeler can afford.

We have included a collet-style adapter, as well as a bolt-on prop adapter.

Specs:
Model: PROPDRIVE v2 5060 380KV
KV: 380KV
Max current: 90A
ESC: 100A
Cell count: 6s~8s LiPo
Pole Count: 14
Bolt holes: 25mm
Bolt thread: M4
Shaft: 6mm
Connectors: 4mm Bullet
Weight: 438g

Performance Data (6S):
18x8: 1460W, 72A, 5855g static thrust
18x10: 1673W, 84A, 6849g static thrust
20x6: 1586W, 79A, 5795g static thrust

Performance Data (8S):
15x6: 1493W, 54A, 5171g static thrust
15x8: 1827W, 67A, 6497g static thrust
16x8: 2166W, 81A, 7395g static thrust
