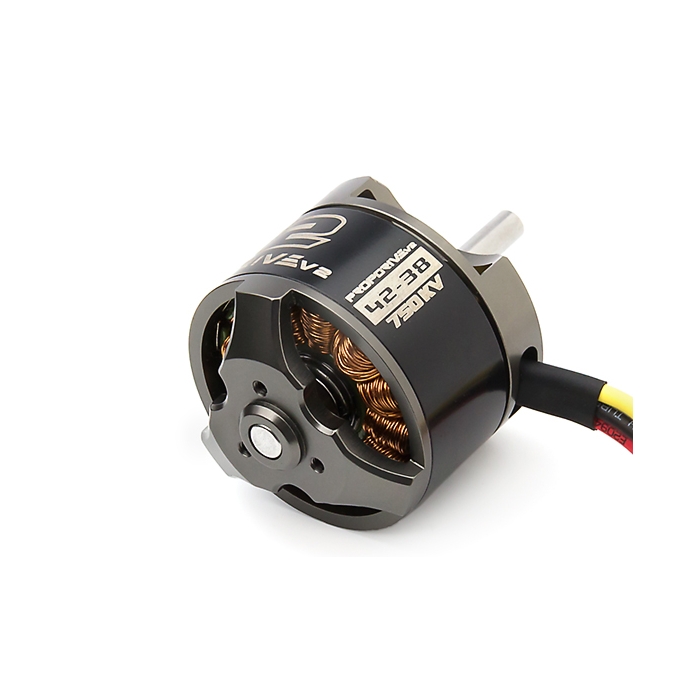

NTMプロップドライブシリーズ42から38 750kv / 785ワット

PROPDRIVE v2 motors are designed to perform right out of the box with tight windings, smooth bearings, correctly rated magnets, precision cut stator, and balanced rotors.

We design and build the PROPDRIVE v2 motors in-house, allowing us to control every aspect of production. We control the entire production line from material sourcing to machining, balancing, and final assembly. PROPDRIVE motors can be trusted to provide years of reliable service at a price every modeler can afford.

We have included a collet-style adapter, as well as a bolt-on prop adapter.

Specs:
Model: PRODRIVE v2 Series 4238 750KV
KV: 750KV
Max current: 55A
ESC: 70~80A
Cell count: 3s~4s LiPo
Pole Count: 14
Bolt holes: 25mm
Bolt thread: M3
Shaft: 5mm
Connectors: 3.5mm Bullet
Weight: 156g

Performance Data (3S):
14x8.5: 479W, 46A, 2470g static thrust
14x10: 526W, 50A, 2734g static thrust
15x10: 609W, 59A, 2996g static thrust

Performance Data (4S):
13x4: 503W, 35A, 2042g static thrust
13x5.5: 626W, 46A, 2583g static thrust
14x6: 795W, 58A, 3107g static thrust
