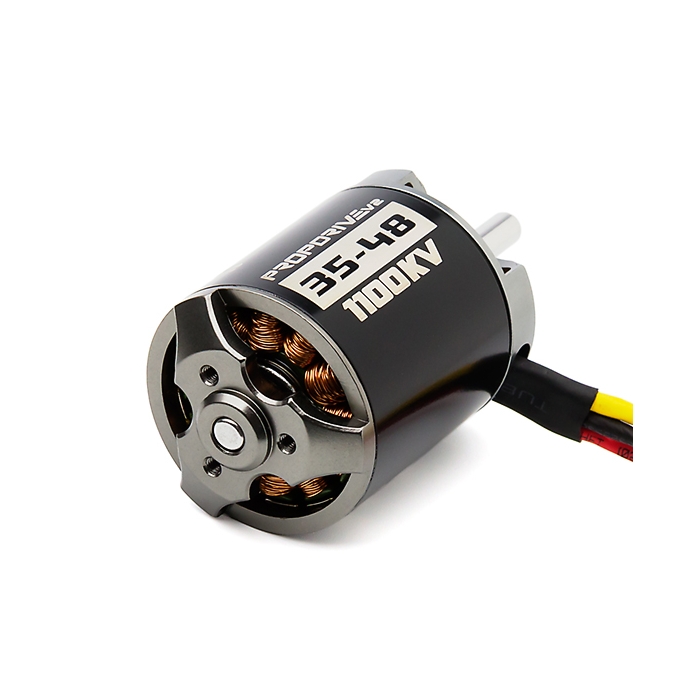

NTMプロップドライブシリーズ35-48Aの1100kv / 640ワット

PROPDRIVE v2 motors are designed to perform right out of the box with tight windings, smooth bearings, correctly rated magnets, precision cut stator, and balanced rotors.

We design and build the PROPDRIVE v2 motors in-house, allowing us to control every aspect of production. We control the entire production line from material sourcing to machining, balancing, and final assembly. PROPDRIVE motors can be trusted to provide years of reliable service at a price every modeler can afford.

We have included a collet-style adapter, as well as a bolt-on prop adapter.

Specs:
Model: PROPDRIVE v2 3548 1100KV
KV: 1100KV
Max current: 70A
ESC: 80~100A
Cell count: 3s~4s LiPo
Pole Count : 14
Bolt holes: 25mm
Bolt thread: M3
Shaft: 5mm
Connectors: 3.5mm Bullet
Weight: 185g

Performance Data (3S):
10x6: 368W, 36A, 1749g static thrust
11x8: 562W, 57A, 2610g static thrust
12x8: 678W, 70A, 3000g static thrust

Performance Data (4S):
9x4.5: 463W, 33A, 1789g static thrust
9x6: 566W, 42A, 2260g static thrust
10x6: 744W, 56A, 2802g static thrust
