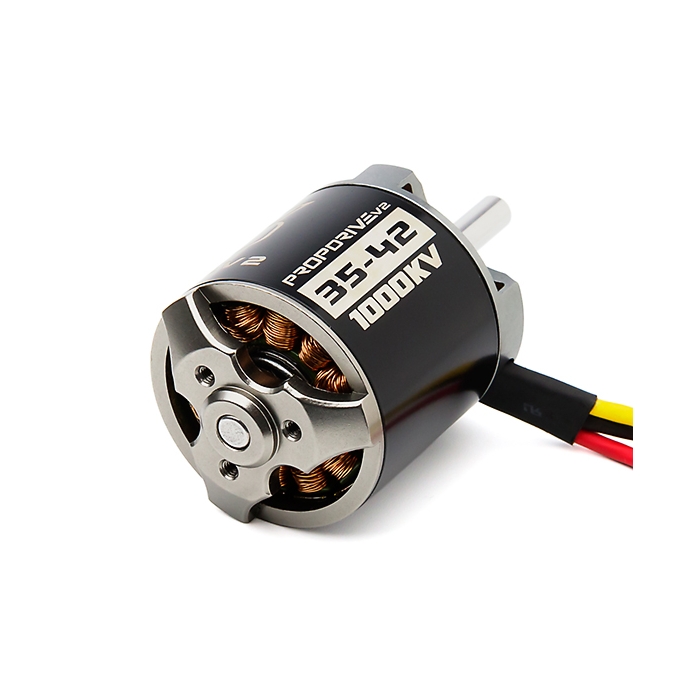

NTMプロップドライブ35-42シリーズ1000KV / 700W

PROPDRIVE v2 motors are designed to perform right out of the box with tight windings, smooth bearings, correctly rated magnets, precision cut stator, and balanced rotors.

We design and build the PROPDRIVE v2 motors in-house, allowing us to control every aspect of production. We control the entire production line from material sourcing to machining, balancing, and final assembly. PROPDRIVE motors can be trusted to provide years of reliable service at a price every modeler can afford.

We have included a collet-style adapter, as well as a bolt-on prop adapter.

Specs:
Model: PROPDRIVE v2 3542 1000KV
KV: 1000KV
Max current: 52A
ESC: 50~60A
Cell count: 3s~4s LiPo
Pole Count: 14
Bolt holes: 25mm
Bolt thread: M3
Shaft: 5mm
Connectors: 3.5mm Bullet
Weight: 155g

Performance Data (3S):
11x6: 361W, 35A, 1739g static thrust
12x6: 446W, 44A, 2033g static thrust
13x5.5: 507W, 51A, 2181g static thrust

Performance Data (4S):
10x5: 511W, 37A, 2017g static thrust
10x6: 574W, 43A, 2309g static thrust
11x5.5: 684W, 51A, 2578g static thrust
