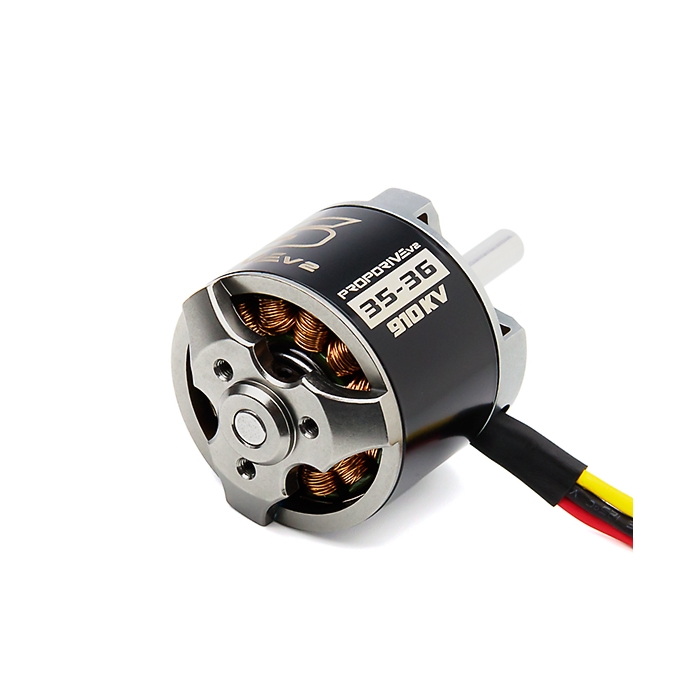

NTMプロップドライブシリーズ35-36A 910Kv / 350W

PROPDRIVE v2 motors are designed to perform right out of the box with tight windings, smooth bearings, correctly rated magnets, precision cut stator, and balanced rotors.

We design and build the PROPDRIVE v2 motors in-house, allowing us to control every aspect of production. We control the entire production line from material sourcing to machining, balancing, and final assembly. PROPDRIVE motors can be trusted to provide years of reliable service at a price every modeler can afford.

We have included a collet-style adapter, as well as a bolt-on prop adapter.

Specs:
Model: PROPDRIVE v2 3536 910KV
KV: 910KV
Max current: 38A
ESC: 40~60A
Cell count: 3s~4s LiPo
Pole Count: 14
Bolt holes: 25mm
Bolt thread: M3
Shaft: 5mm
Connectors: 3.5mm Bullet
Weight: 88g

Performance Data (3S):
11x7.5: 348W, 32A, 1778g static thrust
12x6: 375W, 35A, 1773g static thrust
13x5: 408W, 38A, 1791g static thrust

Performance Data (4S):
10x5: 433W, 30A, 1787g static thrust
10x6: 490W, 34A, 2049g static thrust
11x5: 557W, 39A, 2147g static thrust
