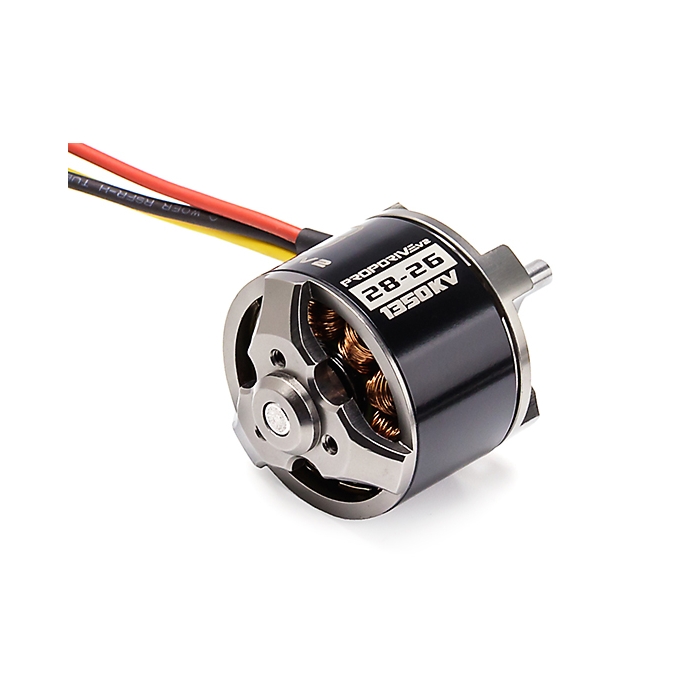

NTMプロップドライブ28から26 1350KV / 302W

PROPDRIVE v2 motors are designed to perform right out of the box with tight windings, smooth bearings, correctly rated magnets, precision cut stator, and balanced rotors.

We design and build the PROPDRIVE v2 motors in-house, allowing us to control every aspect of production. We control the entire production line from material sourcing to machining, balancing, and final assembly. PROPDRIVE motors can be trusted to provide years of reliable service at a price every modeler can afford.

We have included a collet-style adapter, as well as a bolt-on prop adapter.

Specs:
Model: PROPDRIVE v2 2826 1350kv
KV: 1350KV
Max current: 20A
ESC: 20~30A
Cell count: 3s~4s LiPo
Pole Count: 12
Max Power: 265W
Bolt holes: 16mm & 19mm
Bolt thread: M3
Shaft: 3.175mm
Connectors: 3.5mm Bullet
Weight: 58g

Performance Data (3S):
7x4: 114W, 11A, 573g static thrust
7x6: 146W, 14A, 756g static thrust
8x4.5: 168W, 16A, 772g static thrust

Performance Data (4S):
5x5: 113W, 8A, 551g static thrust
6x4: 160W, 11A, 691g static thrust
7x54 235W, 17A, 925g static thrust
