OrangeRx Program Box (for R620X~R1220X V3 & RR12RDTS receivers)

This handy programming box for the OrangeRx R620X to R1220X V3 and RR12RDTS receivers is perfect to have in your toolbox at the flying field in case you want to change the settings without the need for a PC. It has an integrated RF module that allows you to set up the receiver wirelessly or you can use a wired connection. As the RR12RDTS is primarily designed for drones and helicopters this programming box can also be used to adjust the settings of the flight stabilization systems.

It allows you to make changes to the following:
• Frame rates and encryption
• Output serial protocols for flight controllers
• Analog and MSP protocol telemetry settings
• Baudrate
• Bind settings
• Fail-safe modes

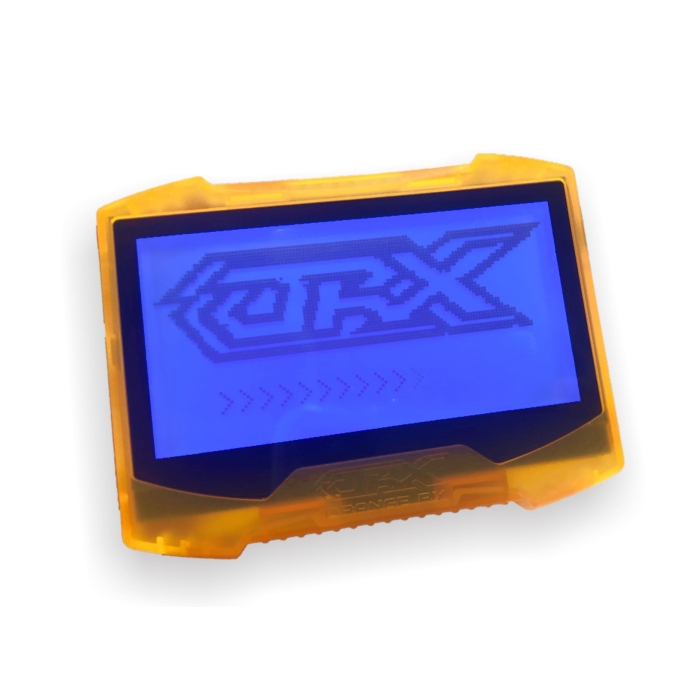

The box has an easy-to-read LCD display (128x64 pixels) and navigation of the menus is easily done with a roller button on the side. Power to the box can be supplied by either a USB or a jack plug up to a maximum voltage of 16.8V DC, so perfect for a 4S lipoly battery.

Features:
• Perfect for changing the settings of the R620X to R1220X and RR12DTS receivers at the flying field
• Can connect wirelessly
• Easy-to-read LCD screen
• Simple to use roller button for navigating the menus
• Designed primarily for the RR12DTS but works well on the Version 3 R620X, R720X, R820X, R920X, R1020X and R1220X receivers

Specs:
Power Input: Up to 16.8V DC
Power Consumption (USB): 80mA max
External Power Source: 50mA @ 12.6V DC
LCD Display: 3" (128x64 pixels)
Dimensions: 63x83x15mm
Weight: 67g
