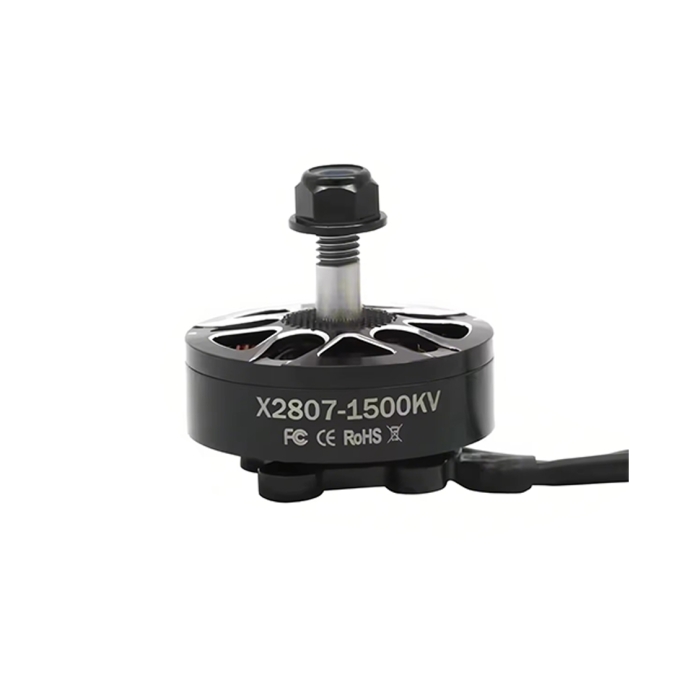

Hobbywing XRotor 2807-1500KV Brushless motor FOR 7 Inch FPV Drone

The Hobbywing XRotor series of brushless motors is now available at HobbyKing! Designed specifically for FPV drones, this series offers various models (including 2807, 2812, etc.) and KV ratings to meet the demanding requirements of different-sized aircraft for thrust and efficiency.

XRotor motors incorporate Hobbywing's advanced technology. The 12N14P slot-pole combination optimizes torque and smoothness, while the 220°C high-temperature resistant H-class enameled wire ensures reliability under high stress. The low internal resistance design helps improve efficiency and reduce power loss. Featuring a reinforced D5+M5 shaft and precision dynamic balancing, the motors guarantee mechanical stability at high RPMs. They come pre-installed with high-quality silicone wires and are recommended to be paired with the equally exceptional Hobbywing XRotor FPV G2 65A 4in1 ESC for integrated high performance.
Shop now at HobbyKing and power your FPV projects with trusted, genuine performance!

Feature:
• High-performance 0.2mm silicon steel sheets.
• The multi-strand enameled wire winding design increases the slot full rate by approximately more than 5%.
• 220℃high-temperature resistant enameled wire.
• Meet the needs of users pursuing extreme motor performance.
• Uses N52 strong magnetic tiles with an arc- shaped design to provide a stronger torque to the motor.

Specs:
Brand: Hobbywing
Model: XRotor 2807 1500KV
KV Rating: 1500KV
LIPO Cells: 4-5S
No-Load Current: 2.27A/20V
Maximum Continuous Current: 59.5A/7s
Maximum Continuous Rating: 1195W/7s
Maximum Thrust: 2646g
Motor Weight: 58.7g
Motor Size: Φ34 * 20.5mm
Slot/Pole: 12N14P
Wire Size: 18AWG
Wire Length: 200mm
Enamelled Wire Insulation Class: 220°C High temperature Resistant, H Class insulation
Internal Resistance: 43.6mΩ
Shaft Diameter: D5+M5
Shaft Length: 15mm
Screw Diameter / Thread: Φ19mm-4*M3
Recommended ESC: Xrotor FPV G2 65A 4in1 ESC
Propeller: 4-5S:HQ7x3.5x3; HQ7x4x3

Included:
1x Hobbywing Xrotor 2807-1500KV Brushless Motor
