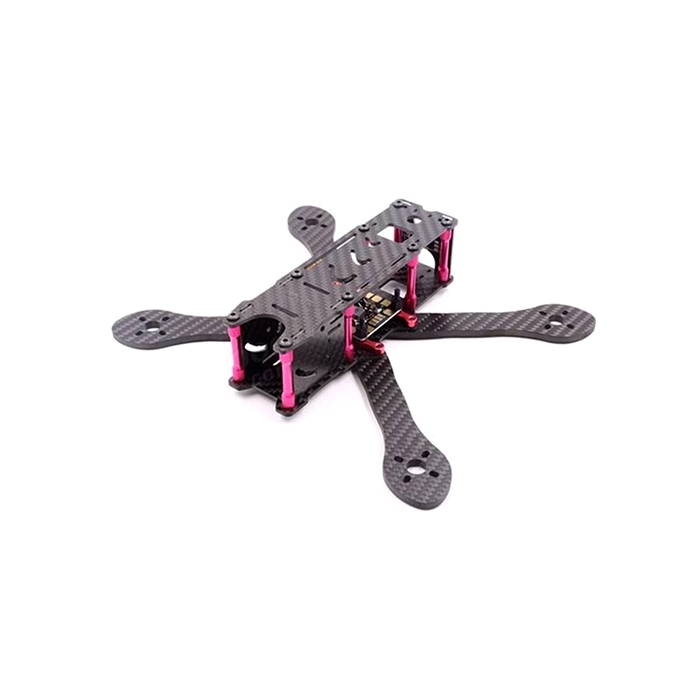

GEP-VX5 FPV Drone Racing Frame (Kit)

GEPRC have changed the classic “X” frame design and have come up with a new design idea with a long dual deck built over the “X” arms. The GEP-VX5 is 215mm wheelbase FPV Drone which is designed for 5” propellers.

The individual 4mm carbon fiber arms have a CNC machined bracket to add additional strength when mounting the arms to the 2mm carbon fiber lower deck. This allows individual arms to be easily replaced if damaged. The upper deck is also of 2mm carbon fiber and joined to the lower deck with eight custom 35mm aluminum columns. Up front, there is an adjustable (0~55deg) FPV camera mount to aid in getting the correct viewing angle. At the back, there is a 10 LED panel that can be either run via the flight controller or stand-alone. GEPRC have also provided a new style PDB (with BEC, 5V 3A output, 12V 500mA output) with an XT60 connector which helps remove some of the cable clutter.

Just connect up your favorite Flight Controller, 20~30A ESCs and 2204~2305 motors powered by 3S~4S 1300mAh to get you moving.

Add your FPV gear and you’ll be racing in no time.

Features:
• 3K high strength carbon fiber arms (4mm) and decks (2mm)
• More motor protection due to arm design
• “X” structure
• Strong and lightweight frame structure (118g, including all fixed parts)
• Adjustable lens, 0-55 deg, perfectly compatible with HS1177 and swift
• PDB, with BEC (5/12v 5V maximum 3A, 12V output maximum 500mA)
• Custom 35mm high strength non-slip aluminum columns

Specs:
Wheelbase: 215mm
Weight:118g (includes Aluminum parts, Top plate 2mm)
Adjustable lens: 0-55 degrees
Arms: 4mm carbon fiber
Bottom deck: 2mm carbon fiber
Upper deck: 2mm carbon fiber
Side frame: 1.5mm carbon fiber

Included:
1 x VX5 frame kit
1 x PDB w/BEC, XT60
1 x LED Board
2 x Battery strap
1 x Build guide

Recommended:
1 x Flight Controller: F3 /Naze32/ CC3D
4 x 2204/2205/2206/2305 Motors
4 x 20A-30A ESCs
4 x 5inch Propellers
1 x 4S 1300mAh Battery
1 x 5~6 Channel Radio Tx/RX
1 x FPV setup (optional)
