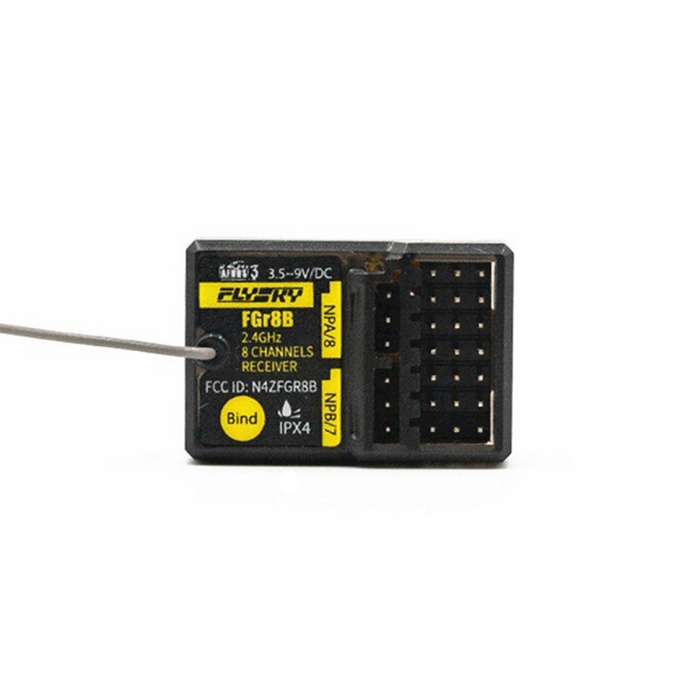

FLYSKY FGr8B 2.4GHz 8 Channel Micro AFHDS 3 Surface Receiver

The FGr8B surface micro receiver adopts FLYSKY's third-generation automatic frequency hopping digital system (AFHDS 3), it is perfectly suited to their range of PL18, NB4, and NB4 Lite transmitters. It uses a single antenna bidirectional transmission system that is uniquely designed to install and output PWM/PPM, and iBUS in signals.

Being a surface receiver it is suitable for all types of models that operate on the ground or on the water. It operates in the 2.4GHz frequency band with up to 8 PWM/PPM channels as well as the iBUS in, it also has the ability to update the firmware online. The receiver is small and lightweight and will accept a wide input voltage, it will operate quite happily on anything from 3.5~9V.

Features:
• Unique design allows data output of PWM/PPM, and iBUS in signals
• Wide input voltage of 3.5~9V
• Bidirectional single antenna
• 2.4GHz frequency
• AFHDS 3 protocol
• Ability to update firmware online
• Small and lightweight

Specs:
Product: FLYSKY FGr8B 2.4GHz 8 Channel Micro AFHDS 3 Receiver
Suitable Transmitters: Any that supports AFHDS 3, inc: FLYSKY PL18, NB4, NB4 Lite
Model Type: Surface models, cars, boats, etc
PWM Channels: 7 (upgradeable to 8 channels)
RF: 2.4GHz
Protocol: AFHDS 3
Antenna: Single
Input Voltage: 3.5~9V
Data Output: PWM/PPM/iBUS in
Temp Range: -10°C~+60°C
Online Updates: Yes
Dimensions: 35x23.3x13.3mm
Weight: 9.4g
Certification: CE, FCC ID: N4ZFGR8B

Note: A copy of the user manual and full specifications is available under the "Files" tab.
